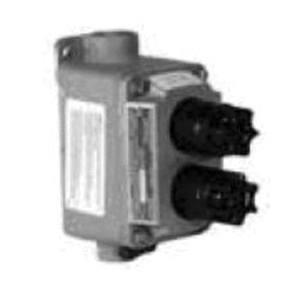

Appleton® Contender™ EFS2561 Dead End Explosionproof Pilot Light Control Station, 600 V AC, 10 A, NEMA 3/7BCD/9EFG
Sku #78138169564
MFG #EFS2561
Attributes
| Type: | Dead End Explosionproof |
| Voltage Rating: | 600 V AC |
| Wattage: | 6 W |
| Series: | EFS |
| Amperage Rating: | 10 A |
| Number of Pilot Lights: | 2 |
- Corrosion-resistant captive stainless steel hex head bolts hold cover to body
- Factory sealed enclosure confines any arcing, with no need to install external sealing fittings at each conduit entry
- Dozens of possible combinations of push buttons, pilot lights and selector switches
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Pushbutton and selector switch contacts are silver cadmium oxide and are sealed in lower phenolic chamber, isolated from corrosive elements, to ensure positive contact and long, trouble free operation
- Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations
- All front operated push buttons are supplied standard with lockable guard to prevent unauthorized operation
- Push buttons and selector switches are used in conjunction with contactors and magnetic starters to provide circuit selection and control for motors
- Pilot lights provide visual confirmation that an electrical function is being performed
- Large back box for ample wiring room
- All momentary pushbuttons are supplied with lockout type guards as standard, hole in guard will accept locks with up to 1/4 in hasp, permits locking of pushbutton to prevent unauthorized operation
- Clearly marked terminals with brass screws and spade terminals assure quick, easy wiring
- For installation in chemical and petrochemical plants, refineries and other process industries and hazardous locations
- Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III|UL 508/698/1203 File No. E10449/E81751
- Internal Ground Screw
