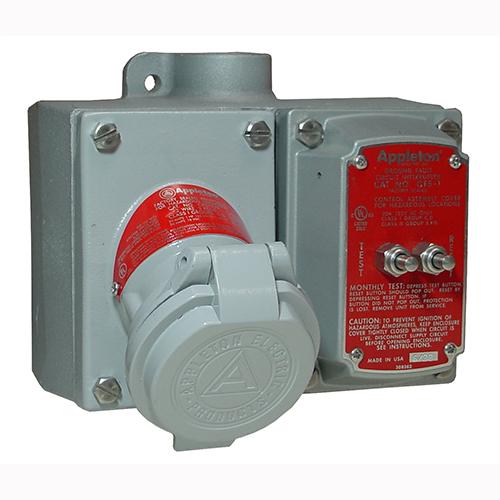

Appleton® U-Line™ EFS250A2023GFI Dead-End Pin and Sleeve Receptacle With GFI Cover and Box, 125 V AC, 20 A, Gray
Sku #78138167129
MFG #EFS250A2023GFI
Attributes
| Type: | Dead-End |
| Amperage Rating: | 20 A |
| Material: | Aluminum |
| Voltage Rating: | 125 V AC |
| NEMA Rating: | NEMA 3/3R/7BCD/9EFG |
| Color: | Gray |
- No external seals are required
- Arcing is confined within the device's interior sealed chamber
- Smooth operating test and reset buttons
- Can be installed in standard EFD series mounting boxes
- Choice of malleable iron or aluminum, dead end or feed thru styles
- Cast copper-free aluminum cover and sealing chamber
- Stainless steel cover bolts, test/reset buttons and shafts
- Baked gray epoxy clad cover and sealing chamber
- Constructional feature explosionproof and dust-ignitionproof
- Factory sealed
- CSA C22.2 #25/C22.2 #30/C22.2 #42/C22 #159/038644|NEC/CEC Class I Division 1 and 2 Group B C D/Class II Division 1 and 2 Group F G/Class III|UL E81751/943/1203
- Provides required ground fault protection for portable electrically operated devices, ground fault protection in hazardous locations, highly corrosive atmospheres, wet locations and can be used in conjunction with U-Line® factory sealed receptacle on 20 A, 125 VAC, 50/60 Hz branch circuits
- 1/2 in Hub
