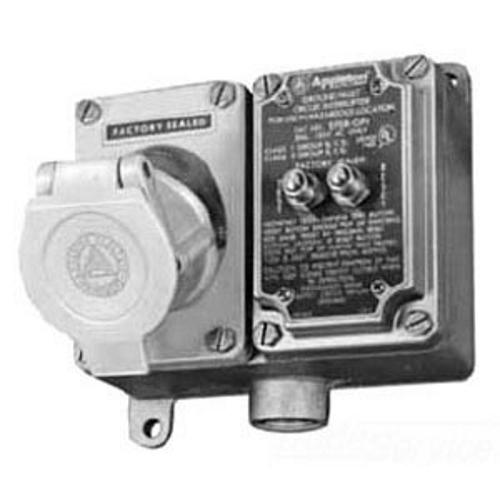

Appleton® U-Line™ EFSC2752023GFI 2-Gang Dust-Ignitionproof Feed Through Explosionproof Receptacle Assembly With GFI Cover and Mounting Box, 125 V AC, 20 A
Sku #78138167119
MFG #EFSC2752023GFI
Attributes
| Type: | 2-Gang Dust-Ignitionproof Feed Through |
| Amperage Rating: | 20 A |
| Material: | Malleable Iron |
| Voltage Rating: | 125 V AC |
| NEMA Rating: | NEMA 3/3R/7BCD/9EFG |
| Country of Origin: | MX |
- EFSR-GFI cover installed on two gang EFD box together with U-Line™ factory sealed receptacle
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Glass filled reinforced polyester insulating blocks
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line™ explosionproof receptacles
- Intermateable with competitor's plugs of like configurations
- CPH and ECP Mating Plugs, U-Line® Factory Sealed Receptacle on 20 A, 125 VAC 50/60 Hz Branch Circuits Applications
- Class I, Groups C and D|Class II, Groups F and G, and Class III|UL File No. E81751|UL 943|UL 1203
- GFI Cover, U-Line® Receptacle and Box
- Limited
