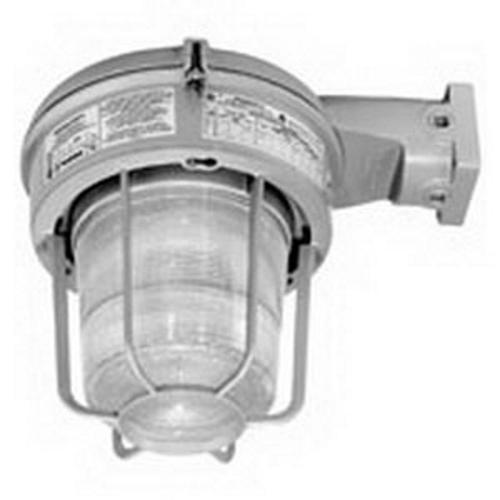

Appleton® Mercmaster™ III MLCI152G1GLB ML Series Marine Location Fixture With Globe and Guard, (1) Lamp, 150 W Fixture, 120 V AC, Epoxy Clad Housing
Sku #78138166259
MFG #MLCI152G1GLB
Attributes
| Series: | ML Series |
| Fixture Wattage: | 150 W |
| Lamp Wattage: | 150 W |
| Voltage Rating: | 120 V AC |
| Amperage Rating: | 2.5/1.1 A |
| Lamp Base Type: | Medium |
- Compact light weight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures
- Modular design allows scores of fixture component combinations to meet installation and lighting needs
- Uses same mounting hoods and optical accessories as Mercmaster™ III
- A choice of heat resistant prismatic glass refractors (NEMA I, III or V) or heat resistant globes which thread directly into ballast housing
- Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres
- Accommodates medium base lamps
- All Mercmaster™ III mounting hoods have provision for easy field installation of fuses in fixtures
- Fixtures are for use in class I, Zone 2 hazardous locations
- The AEx nA nR factory sealed Mercmaster™ III prevents vapors and gases from entering the globe chamber
- There are no seals or putty required which will reduce installation time and installation errors
- 60 Hz frequency rating
- 3/4 in NPT hub
- Stainless steel hardware and latch assembly, cast copper free (4/10 of 1% maximum) aluminum mounting hood, body and guard
- Cast Guard
- Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, AEx nA nR IIC (Z2), Class I, Zone 2, Ex nR IIC (Z), Class I, Zone 2, AEx nR IIC (ZB), Class II, Division 1, 2, Groups E, F, G, Class III|UL 1598A, 60079-15, 844|CSA LR25428 Certified
- Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas, Waste, Sewage Treatment and Parking Garages
- 1 Year
