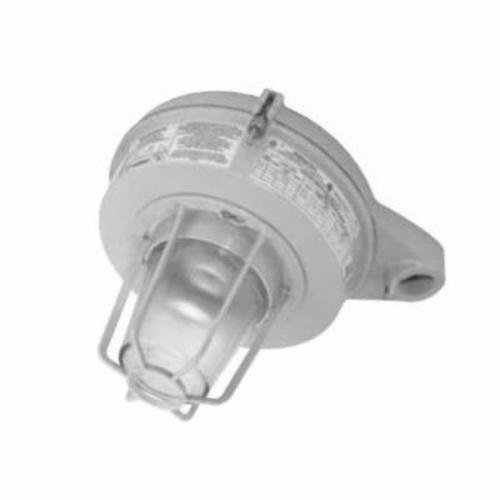

Appleton® Mercmaster™ III MLSL154G1GMT ML Series Low Profile Marine Location Fixture, (1) Lamp, 188 W Fixture, 120/208/240/277 V AC, Epoxy Clad Housing
Sku #78138165681
MFG #MLSL154G1GMT
Attributes
| Type: | Low Profile |
| Voltage Rating: | 120/208/240/277 V AC |
| Amperage Rating: | 1.7/0.72 A |
| Series: | ML Series |
| Fixture Wattage: | 188 W |
| Lamp Wattage: | 150 W |
- Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas, Waste, Sewage Treatment and Parking Garages Applications
- Cast Guard
- ANSI Specified|cULus File No. E10444|UL 844/1598/60079-0/60079-15|C22.2 No. 9/137/025428/025428|CAN/CSA E60079-0|E60079-15
- Compact light weight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures
- Modular design allows scores of fixture component combinations to meet installation and lighting needs
- Uses same mounting hoods and optical accessories as Mercmaster™ III
- A choice of heat resistant prismatic glass refractors (NEMA I, III or V) or heat resistant globes which thread directly into ballast housing
- Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres
- Accommodates medium base lamps
- All Mercmaster™ III mounting hoods have provision for easy field installation of fuses in fixtures
- Fixtures are for use in class I, Zone 2 hazardous locations
- The AEx nA nR factory sealed Mercmaster™ III prevents vapors and gases from entering the globe chamber
- There are no seals or putty required which will reduce installation time and installation errors
- 60 Hz frequency rating
- 1-1/4 in hub
- 25 deg stanchion fixture
