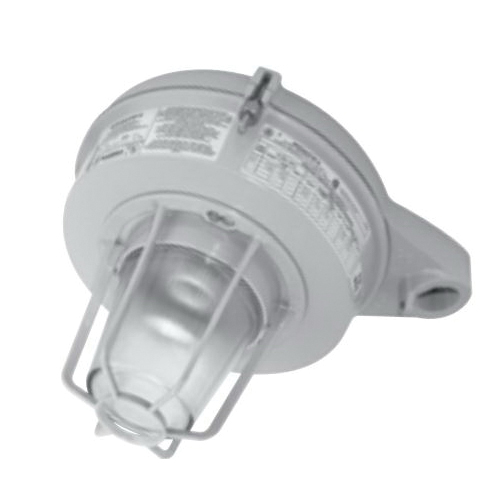

Appleton® Mercmaster™ III MLSL705G1GMT ML Series Enclosed Gasketed Low Profile HID Luminaire With Globe and Cast Guard, 94 W Fixture, 120 to 277 V AC, Baked Gray Epoxy Clad Housing
Sku #78138165590
MFG #MLSL705G1GMT
Attributes
| Type: | Enclosed Gasketed Low Profile |
| Voltage Rating: | 120 to 277 V AC |
| Amperage Rating: | 0.9/0.5/0.44/0.35 A Starting/0.82/0.48/0.41/0.36 A Operating |
| Series: | ML Series |
| Fixture Wattage: | 94 W |
| Lamp Wattage: | 70 W |
- Compact lightweight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures
- Modular design allows scores of fixture component combinations to meet installation and lighting needs
- A choice of heat-resistant prismatic glass refractors (NEMA I, III or V) or heat-resistant globes which thread directly into ballast housing
- Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction ensures 360 deg compression at all points on ballast housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- All Mercmaster™ III mounting hoods have provision for easy field installation of fuses in fixtures
- Fixtures are for use in Class I, Zone 2 hazardous locations
- No seals or putty required, reducing installation time and errors
- 0.9 A at 120 VAC, 0.5 A at 208 VAC, 0.44 A at 240 VAC, 0.35 A at 277 VAC starting, 0.82 A at 120 VAC, 0.48 A at 208 VAC, 0.41 A at 240 VAC, 0.36 A at 277 VAC operating
- For marine and wet locations and in a wide range of industrial, chemical processing and other areas where flammable gases and vapors or combustible dusts are present, areas of low clearance, low ceiling heights or where fixture weights must be minimized, in non-hazardous locations where severe weather conditions, excessive moisture, dirt, dust or corrosive atmospheres are present, oil refineries, pulp and paper mills, chemical plants, food-processing areas, inspection facilities, foundries, power plants, storage areas, waste and sewage treatment, parking garages, and other areas where dust, water, dirt and rough usage are a problem
- cULus E10444|ANSI|UL 844/1598/60079-0/60079-15|CSA 025428|CSA C22.2 File No. 9|CSA C22.2 File No. 137|CAN/CSA E60079-0, E60079-15|Class I, Div 2, Groups A, B, C, D, Class I, Zone 2, AEx nA nR IIC (Z2), Class I, Zone 2, Ex nR IIC (Z), Class I, Zone 2, AEx nR IIC (ZB), Class II, Div 1 and 2, Groups E, F, G, Class III
