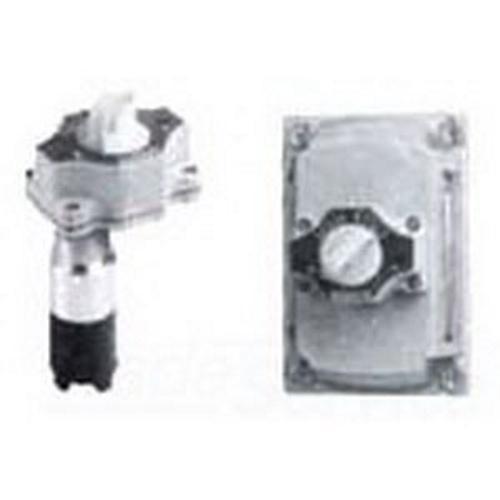

Appleton® EFKB102 2-Circuit Factory Sealed Selector Switch Assembly With Cover, 600 V AC, 10 A, 1NO-1NC Contact
Sku #78138163449
MFG #EFKB102
Attributes
| Type: | 2-Circuit Factory Sealed |
| Voltage Rating: | 600 V AC |
| Contact Configuration: | 1NO-1NC |
| Series: | EFKB |
| Amperage Rating: | 10 A |
| Contact Mode: | Maintained |
- Factory sealed selector switches furnished with nylon cam operated, heavy duty push buttons for either 2-position or 3-position maintained contact operation
- High thermal and arc resistance, high dielectric strength
- Copperfree (4/10 of 1% maximum) aluminum operator mechanism, nylon cam and sealed phenolic contact block
- Used in conjunction with contactors or magnetic starters for remote control of motors
- UL 508/698/1203|UL File No. E10449|UL File No. E81751|Class I, Div 1 and 2, Groups C, D Class II, Div 1 and 2, Groups E, F, G and Class II
