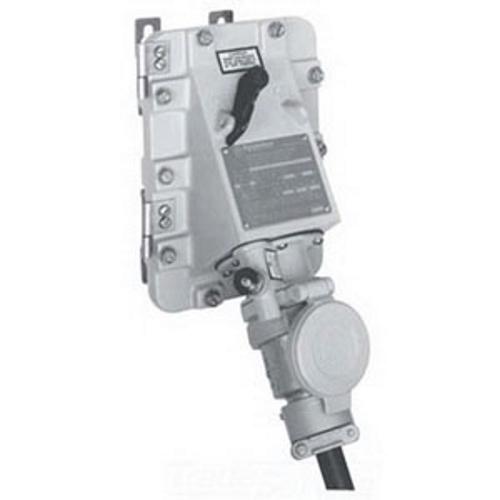

Appleton® JBR3034150 JBR Dead Front Interlocked Switched Receptacle With Mounting Box, 600 V AC, 30 A, 4 Poles, 3 Wires
Sku #78138163273
MFG #JBR3034150
Attributes
| Type: | Dead Front Interlocked |
| Voltage Rating: | 600 V AC |
| Horsepower: | 20 hp |
| Series: | JBR |
| Amperage Rating: | 30 A |
| Frequency Rating: | 50 to 400 Hz |
- ACP3023BC and CPH3023B Plugs and Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors, Pumps, Stainless Steel Captive Cover Bolts, Mounting Feet and Hinges Applications
- Plug must be inserted into receptacle before the switch is in the on position
- JBR is UL listed for use with ACP Powertite® and CPH plugs
- Receptacle supplied with flip cover and screw cover
- Positive polarization only plugs of the same style, number of poles and amperage rating may be used with these receptacles
- Terminal block provided in mounting box for ease of wiring, factory wired between the receptacle and terminal block
- Style 2-shell and extra pole grounding
- Receptacles may be locked in the off position
- Mounting box provided 1-1/2 in vertical feed thru conduit openings, reducer bushings provided for 1-1/4 in conduit opening, all conduit openings have NPT threads
- O-rings gasket provided between the mounting box and receptacle cover
- Internal switch provides safe and quick disconnect means, no need for separate disconnect switch
- 3-phase, surface mounting
- 10 to 4 AWG copper/aluminum wire
- Epoxy powder coated finish
- Made of copper free aluminum
- ACP3023BC Powertite® mating plug
- CPH3034B complete plug
- Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E10784
