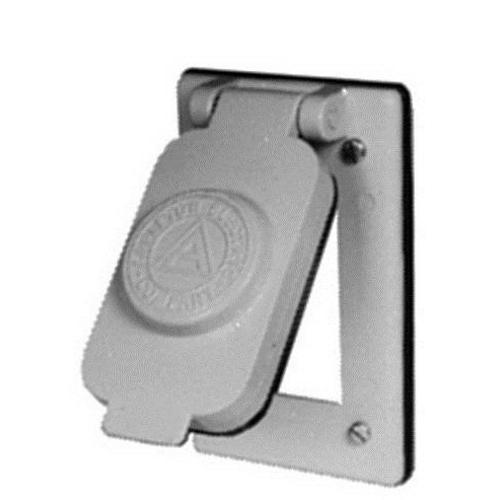

Appleton® FSKWGF1 Single Device Box Cover, 6-7/16 in L x 2-13/16 in W x 1-5/32 in D, Duplex Receptacle Cover, Die Cast Copper Free Aluminum
Sku #78138163126
MFG #FSKWGF1
Attributes
| Type: | Single |
| Number of Gangs: | 1 |
| Width: | 2-13/16 in |
| Number of Outlets: | 1 |
| Length: | 6-7/16 in |
| Depth: | 1-5/32 in |
- Also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box
- Large head cover screws are captivated
- Single cover units accommodate NEMA configuration receptacles for locking or non-locking blade plugs, or toggle switches
- Duplex units accommodate one receptacle and one toggle switch or any combination of the two
- Covers open all the way, permitting easy plug insertion and withdrawal, also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box, large head cover screws are captivated
- Unique design of spring door hinge provides smooth action, duplex units have a separate hinge shaft for each spring door cover to reduce stress on the shafts
- Spring door cover puts pressure on plug (without tilting plug) to hold plug in best position for providing optimum weatherproof seal
- For use with GFI-meets NEMA 3R wet location in closed position only
- UL 514A File No. E2527|CSA C22.2 No. 18.1, 001472|NEMA FB-1
- Stainless Steel Screws
- Limited
