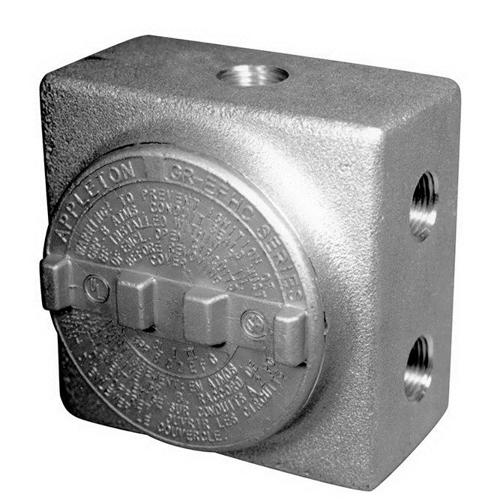

Appleton® UNILETS™ GRSS100 Dust-Ignitionproof Raintight Explosionproof Conduit Outlet Box With Multiple Hubs and Cover, 1 in, 3.38 in Cover Opening, 29 cu-in, Epoxy Powder Coated
Sku #78138162544
MFG #GRSS100
Attributes
| Type: | Dust-Ignitionproof Raintight |
| Size: | 1 in |
| Capacity: | 29 cu-in |
| Series: | GRSS |
| Cover Opening Size: | 3.38 in |
| Suitable For Use With: | Threaded Metal Conduit System |
- Indoor/Outdoor Applications
- (4) Close-Up Plugs, Internal Ground Screw and O-Ring
- Explosionproof dust-ignitionproof, raintight
- Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Multiple hubs permit flexibility
- Complies with a wide range of classified area requirements
- Corrosion-resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Internally threaded aluminum bodies with externally threaded aluminum form one covers, has seven hubs - two on each of the sides, one on the top, one on the bottom and one on the center in the back
- Limited
- UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 025875 Certified, Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
