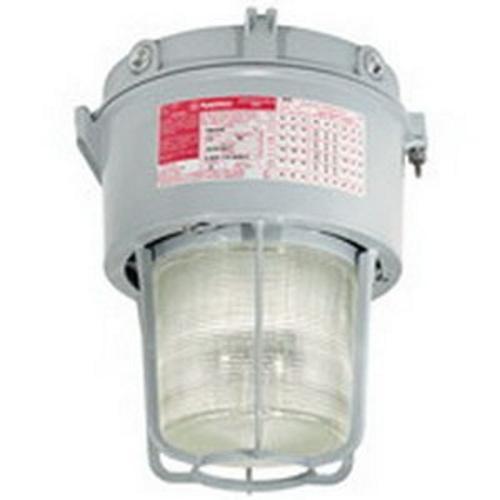

Appleton® KPB100H-MT Ballast Body, HID Lamp, 100 W Lamp, 120/208/240/277 V AC
Sku #78138162068
MFG #KPB100H-MT
Attributes
| Series: | KP Series |
| Lamp Wattage: | 100 W |
| Voltage Rating: | 120/208/240/277 V AC |
| Lamp Type: | HID |
| Wattage: | 130 W |
| Amperage Rating: | 0.5 A |
- UL 1598/1598A/844/60079-0/60079-15/E10444|CSA 025428/CSA C22.2 No. 9/No. 137, CAN/CSA E60079-0, E60079-15|Class I, Div 2, Groups A, B, C, D Class I, Zone 2 Ex nR IIC (Z) Class II, Div 1, 2, Groups E, F, G Class III CEC, Type 4X IP66 CEC
- Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas and Marine Applications
- Super constant wattage autotransformer ballast
- 60 Hz frequency
- Cast copperfree (4/10 of 1% max) aluminum with electrostatically applied baked gray epoxy clad finish ballast body
- 90% minimum power factor
- Heat-resistant globes, thread directly into the ballast housing and seal against a high temperature silicone rubber gasket
- For electrical protection, a ground wire is provided on each Mercmaster to bond hood and ballast housing
- Constructional feature dusttight, moisture resistant, weatherproof
- 90 deg C supply wire, 40/55/65 deg C ambient temperature
- For simultaneous exposure to combustible dusts and flammable gases or vapors
- 1 lamp, mogul base
- Mounting hood
- Pulse start metal halide lamp
