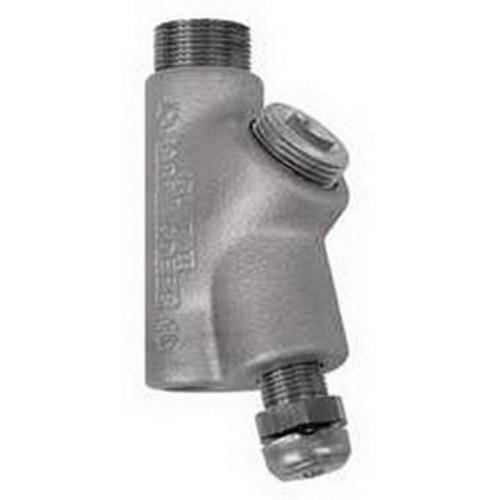

Appleton® UNILETS® EYDM-75AL Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting With Removable Male Nipple, 3/4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Almag 35 Aluminum, Epoxy Powder Coated
Sku #78138161983
MFG #EYDM-75AL
Attributes
| Type: | Dust-Ignitionproof Explosionproof Raintight |
| Size: | 3/4 in |
| Material: | Almag 35 Aluminum |
| Series: | EYDM |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Finish: | Epoxy Powder Coated |
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- Close radius type for sealing vertical conduit runs
- Restrict any explosion to the sealed off enclosure
- Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
- Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
- Tapered MNPT X tapered FNPT connection
- 25% fill vertical conduit drain sealing fittings
- Access cover has drain valve for automatic draining of water accumulation above the seal
- For prevent passage of gases, vapors or flames from one portion of conduit system to another
- UL 886|UL 1203 File No. E10444|CSA C22.2 No. 30|CSA 065181
