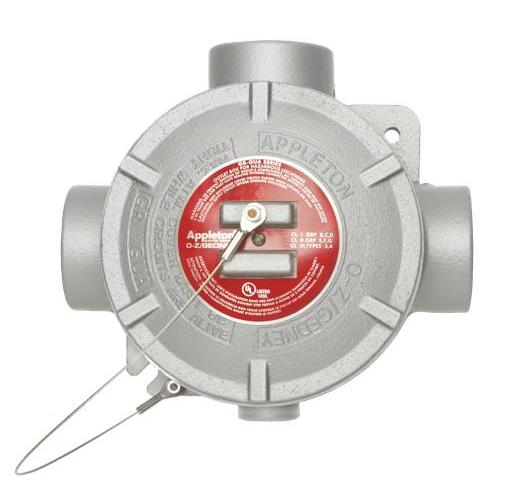

Appleton® GRTS15075 GRTS Conduit Outlet Box, 3/4 x 1-1/2 x 3/4 in Hub, 4.88 in Cover Opening, Ductile Iron, Triple Coat
Sku #78138161121
MFG #GRTS15075
Attributes
| Type: | Conduit |
| Hub Size: | 3/4 x 1-1/2 x 3/4 in |
| Capacity: | 72 cu-in |
| Series: | GRTS |
| Cover Opening Size: | 4.88 in |
| Suitable For Use With: | Stanchion Mounted Lighting |
- T-configurations with large center 1-1/2 in hub for direct stanchion pole mounting
- Side hub entry options 1-1/2 in to cover most needs or 3/4 in for most common conduit attachment
- Unique mounting feet to provide extra support or when used with cable
- Captive cover with aviation cable eliminates drop hazard
- Standard O-rings provide raintight fit NEMA 3, 4
- Ambient temperature range -40 to 60 deg C
- NEMA 4X performance when using gasketed aluminum cover and aluminum body option
- Factory installed drain option eliminates need for reducers or adapters
- DIN Rail mounted terminal blocks up to 12 positions and 10 AWG capacity for any power or wire termination needs
- Cabled covers prevent drop hazard during maintenance
- Triple Coat Zinc Electroplate, Chromate, Epoxy Powder Coat Standard Finishes
- UL 1203|CSA Standard C22.2 No 25, C22.2 No 30|cULus Listed E85310|NEC/CEC RATINGS Class I, Division 1 and 2, Groups B, C, D|Class II, Division 1 and 2, Groups E, F, G|Class III|Class 1, Zone 1 and 2, IIA, IIB, IIB + H2|NEMA 3, 4, 4X|IP66
- Stanchion Mounted Lighting, Conduit or Cable Infrastructures
