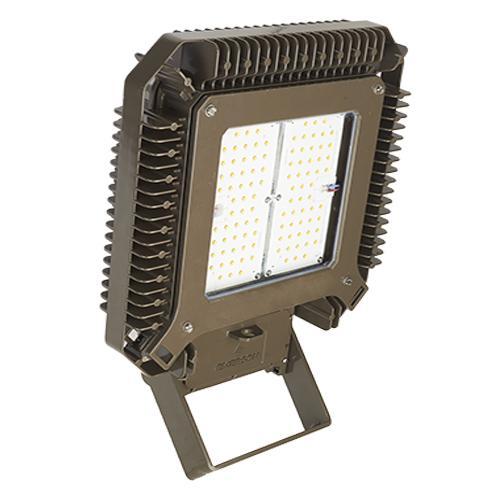

Appleton® Areamaster™ II AMLHL3CG5BU Enclosed Gasketed Floodlight Fixture, LED Lamp, 310 W Fixture, 120/277 VAC, 170/300 VDC, Architectural Bronze Polyester Coated Housing
Sku #78138160157
MFG #AMLHL3CG5BU
Attributes
| Type: | Enclosed Gasketed |
| Voltage Rating: | 120 to 277 V AC/170 to 300 V DC |
| Amperage Rating: | 2.67/1.15/1.8/0.99 A |
| Series: | AMLH |
| Fixture Wattage: | 310 W |
| Lamp Type: | LED |
- RoHS Compliant|CSA C22.2 No. 250.0, C22.2 No. 137|cCSAus 164460/NEC/CEC|IECEx/ATEX Certified|UL 844, 1598, 8750 Listed
- Oil and Gas Refineries, Petrochemical Plants, Foundries, Drilling Rigs, Pulp and Paper Mills, Food and Beverage Processing Facilities, Loading Docks, Power Plants, Water and Wastewater Treatment Facilities
- Three lumen outputs provide up to 38000 lumens
- Choice of optics for optimal light distribution in a variety of applications
- Separate field wiring compartment with screw terminal block for easy and secure connection
- Two 3/4 in NPT entries provided
- Yoke bracket is designed to accommodate traditional Areamaster™ brackets and slip fitters for easy retrofit
- Rugged and compact housing with superior thermal design translates to long luminaire life
- Heavy duty, high temperature silicone rubber gaskets
- Thermal shock and impact resistant clear or frosted glass lens
- Standard 6 kV surge protection
- Captive fasteners secure one-piece lens
- Field replaceable LED driver and lens cover
