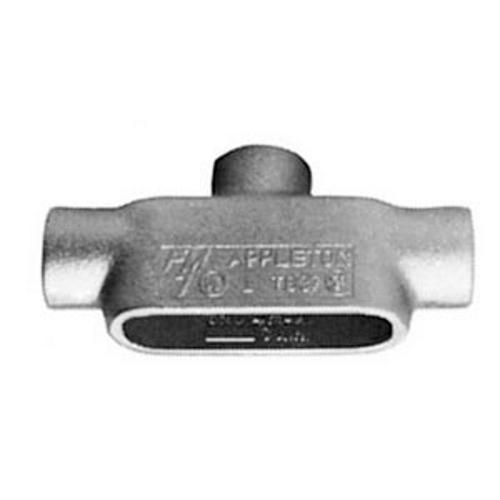

Appleton® UNILETS™ TB27SA Type TB Conduit Outlet Body, 3/4 in Hub, Form 7, 10 cu-in, Cast Aluminum, Epoxy Powder Coated
Sku #78138160106
MFG #TB27SA
Attributes
| Type: | Type TB |
| Number of Hubs: | 3 |
| Form: | Form 7 |
| Hub Size: | 3/4 in |
| Capacity: | 10 cu-in |
| Enclosure: | NEMA FB-1 |
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok™ form-in-place covers with integral gasket are approved for use in wet locations
- Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok™ clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
- Cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
- UL 514A/514B/E2527|C22.2 No. 18.3|CSA 065183
- For Rigid Steel/Aluminum and IMC Conduit
