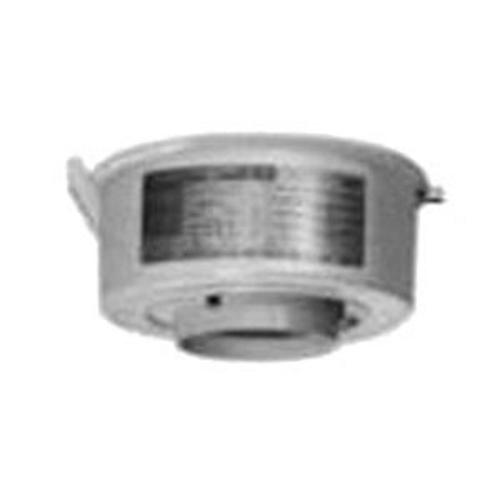

Appleton® Mercmaster™ III 250 KPB70L-MT KP Series HPF Ballast Body, High Pressure Sodium Lamp, 70 W Lamp, 120/208/240/277 V AC, 16.96 in L
Sku #78138154852
MFG #KPB70L-MT
Attributes
| Type: | HPF |
| Lamp Type: | High Pressure Sodium |
| Wattage: | 94 W |
| Series: | KP Series |
| Lamp Wattage: | 70 W |
| Voltage Rating: | 120/208/240/277 V AC |
- The Mercmaster™ III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations
- Epoxy powder coat finish electrostatically applied for complete uniform corrosion protection
- Modular design allows scores of fixture component combinations to meet installation and lighting needs
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction ensures 360 DEG compression at all points on ballast housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- Body gaskets and globe gaskets are high temperature silicone rubber
- Capacitors are non-PCB type, thermally isolated from ballast
- Mogul base porcelain socket with nickel plated contacts has 200 deg C welded leads, prewired to the ballast to ensure trouble free operation in high ambient temperatures
- All Mercmaster™ III mounting hoods have provision for easy field installation
- CSA 025428|CSA C22.2 File No.9, C22.2 File No.137|CAN|CSA E60079-0, E60079-15|UL Standard ANSI|UL 844, 1598, 60079-0, 60079-15|UL Listed for Class I, Div 2, Groups A, B, C, D|Class I, Zone 2, AEx nA nR IIC (Z2)|Class I, Zone 2, AEx nR IIC (ZB)|Class II, Div 1 and 2, Groups E, F, G|Class III
- Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas and Marine Applications
