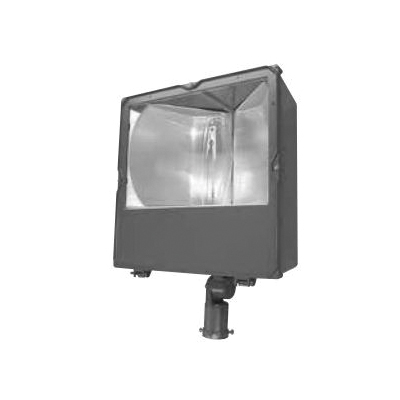

Appleton® Areamaster™ G-AM865L-MT 1000 Integrally Ballasted Weatherproof Floodlight Fixture, (1) High Pressure Sodium Lamp, 1100 W Fixture, 120/208/240/277 V AC, Architectural Bronze Polyester Coated Housing
Sku #78138151876
MFG #G-AM865L-MT
Attributes
| Type: | Integrally Ballasted Weatherproof |
| Voltage Rating: | 120/208/240/277 V AC |
| Amperage Rating: | 9.5/5.5/4.8/4.2 A |
| Series: | 1000 |
| Fixture Wattage: | 1100 W |
| Lamp Type: | High Pressure Sodium |
- Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Storage Areas, Parking Garages, Waste and Sewage Treatment Applications
- Highly efficient, integrally ballasted floodlight
- Compact, lightweight, yet rugged die-cast aluminum construction
- Combines architecturally beautiful design with rugged dependability, simple installation and maintenance
- Easy to install and service
- Wide range of ballasts and voltages are available for both domestic and export applications
- One-piece housing
- One-piece lens cover secured by five 1/4 in diameter captive stainless steel slotted hex head bolts
- Thermal shock and impact resistant glass lens
- Heavy duty, high temperature silicone rubber gasket, firmly seated
- Heavy duty mogul base porcelain socket with heavy gauge brass, nickel-plated, double lamp-grip screw shell and spring loaded center contact
- Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
- 3/4 in NPT tapped hub for power entry
- NEC Certified|CEC Approved|UL 1598|UL 844 File No. E10794
