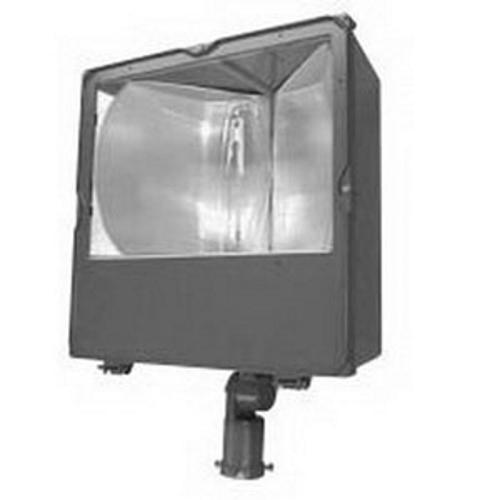

Appleton® Areamaster™ Slip-fit G-AM865H-MT Floodlight Fixture, Metal Halide Lamp, 1080 W Fixture, 120/208/240/277 VAC, Architectural Bronze Polyester Coated Housing
Sku #78138151873
MFG #G-AM865H-MT
Attributes
| Voltage Rating: | 120/208/240/277 V AC |
| Amperage Rating: | 0.16 A |
| Lamp Wattage: | 1000 W |
| Fixture Wattage: | 1080 W |
| Lamp Type: | Metal Halide |
| Ballast Type: | Constant Wattage Autotransformer (CWA) |
- Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Storage Areas, Parking Garages, Waste and Sewage Treatment Applications
- Compact in size, attractively styled contemporary design, rugged and dependable
- Easy to install and service
- A wide range of ballasts and voltages are available for both domestic and export applications
- Integral ballast
- 1-piece housing
- 1-piece lens cover
- Secured by four 1/4 in Dia captive stainless steel slotted hex head bolts
- Thermal shock and impact resistant glass lens standard
- Heavy duty, high temperature silicone rubber gasket, firmly seated
- Heavy duty mogul-base porcelain socket with heavy gauge brass, nickel plated, double lamp-grip screw shell and spring loaded center contact
- Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
- 3.5 A starting, 4 A at 277 VAC current rating
- 3/4 in NPT hub
- Metalized high reflectance finish reflector
- 50/60 Hz frequency rating
- Copper free aluminum housing and lens door, silicone rubber gasket, stainless steel bolts, (2) aluminum provided close-up plugs, zinc plated steel yoke mount
- UL 1598|UL 1598A|UL 844 File No. E10794|CSA C22.2 No. 25/94/97/137 File No. LR25248
