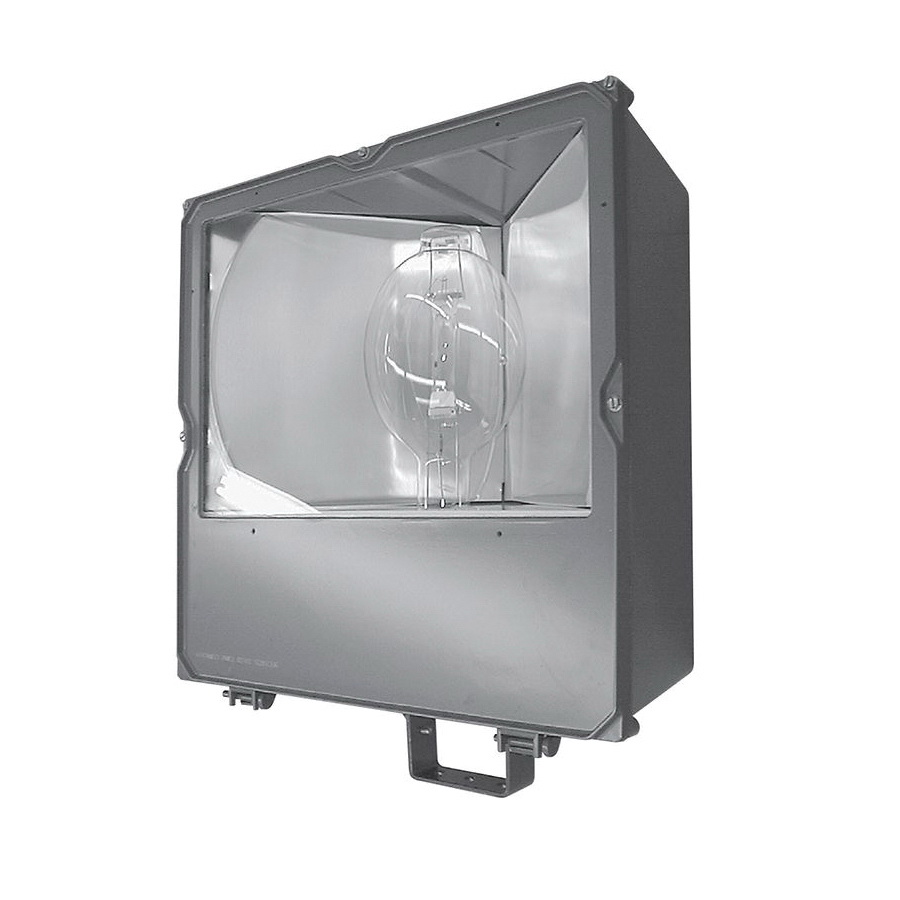

Appleton® Areamaster™ G-AM861L-MT 1000 Explosionproof Floodlight Fixture With Integral Ballast, 1100 W Fixture, 120/208/240/277 V AC, Architectural Bronze Polyester Housing
Sku #78138151868
MFG #G-AM861L-MT
Attributes
| Type: | Explosionproof |
| Voltage Rating: | 120/208/240/277 V AC |
| Amperage Rating: | 2.75/3.2/3.8/4.2/4.8/5.5/6.35/9.5 A |
| Series: | 1000 |
| Fixture Wattage: | 1100 W |
| Lamp Wattage: | 1000 W |
- Highly efficient, integrally ballasted floodlight has compact, lightweight, yet rugged die cast aluminum construction
- Combines architecturally beautiful design with rugged dependability, simple installation and maintenance
- A wide range of ballasts and voltages are available for both domestic and export applications
- 1-piece housing with 1-piece lens cover
- The cover is secured by four 1/4 in Dia captive stainless steel slotted hex head bolts
- Thermal shock and impact resistant glass lens
- Heavy duty, high temperature silicone rubber gasket, firmly seated
- Heavy duty mogul base porcelain socket with heavy gauge brass, nickel plated, double lamp grip screw shell and spring loaded center contact
- Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
- 3/4 in NPT tapped hub for power entry
- 6.35 A at 120 VAC, 3.8 A at 208 VAC, 3.2 A at 240 VAC, 2.75 A at 277 VAC starting, 9.5 A at 120 VAC, 5.5 A at 208 VAC, 4.8 A at 240 VAC, 4.2 A at 277 VAC operating
- Pulp, Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Storage Areas, Waste, Sewage Treatment, Parking Garages, Shopping Malls, Industrial Complexes, Ship Loading Areas, Mining Sites, Parking Lots, Sports Areas, Wet Locations and Hazardous Locations
- UL 1598|UL 844|UL File No. E10794|UL File No. E85142
