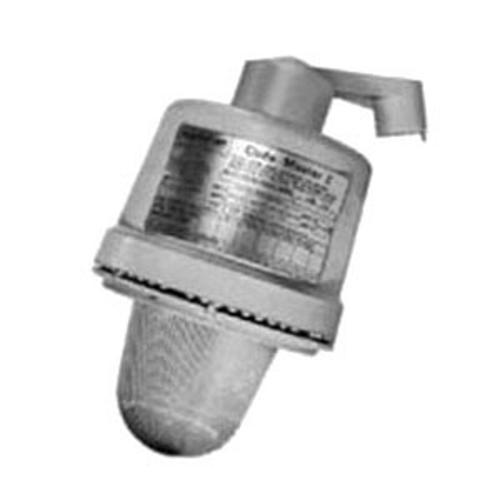

Appleton® Code Master™ 2 CLS40150-MT Factory Sealed Explosionproof HID Luminaire, 1 Lamp, 400 W Fixture, 120 to 277 VAC, Epoxy Powder Coated Housing
Sku #78138147178
MFG #CLS40150-MT
Attributes
| Type: | Dust-Ignitionproof Factory Sealed |
| Voltage Rating: | 120 to 277 V AC |
| Amperage Rating: | 3.1/1.8/1.6/1.35 A Starting/3.9/2.25/1.95/1.7 A Operating |
| Series: | CL Series |
| Fixture Wattage: | 400 W |
| Lamp Wattage: | 400 W |
- UL 1598, 844, E1044|CSA C22.2 No. 250|C22.2 No.137, 025428|NEC: Class I, Division 1 and 2, Groups C, D|Class II, Division 1 and 2, Groups E, F, G|Class III|CSA: Class I, Division 1 and 2, Groups B, C, D|Class I, Zone 1 and 2, IIB, IIA|Class II, Division 1, Groups E, F, G|Class II, Division 2, Groups F, G|Class II, Exd IIB, Zone 1
- For use in chemical and petrochemical plants, such as manufacturers of plastics, paints and thinners, in refineries and in other process areas where ignitable vapors, dust, moisture, marine and corrosive elements may be present and wet locations
- Epoxy powder coat finish electrostatically applied for complete uniform corrosion protection
- Fixtures operate safely in high ambient temperatures
- Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
- Patented wireless design threading of fixture unit onto mounting hood makes electrical connection (the only wiring required is attaching two wires to connection block in mounting hood)
- Safe, easy servicing without disconnecting any wiring
- ACME double-lead threads speed installation and fixture removal from mounting hood only half as many turns are required as for single lead threads
- All threaded joints are flame-tight
- Strategic location of lamp socket in combination with the interior prism design of the glass globe provides optimum light distribution and control
- Porcelain socket with nickel plated phosphor bronze screw shell, assures long trouble free operation in high ambient areas
- 3.1 A at 120 VAC, 1.8 A at 208 VAC, 1.6 A at 240 VAC, 1.35 A at 277 VAC starting, 3.9 A at 120 VAC, 2.25 A at 208 VAC, 1.95 A at 240 VAC, 1.7 A at 277 VAC operating
