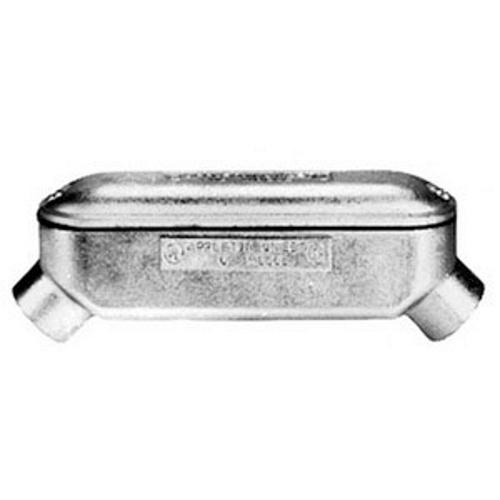

Appleton® Mogul UNILETS™ BUB150-M NEC 6x Type UB Conduit Outlet Body With Cover and Gasket, 1-1/2 in Hub, 91 cu-in, Malleable Iron, Triple Coated
Sku #78138146367
MFG #BUB150-M
Attributes
| Type: | Type UB |
| Hub Size: | 1-1/2 in |
| Capacity: | 91 cu-in |
| Series: | NEC 6x |
| Number of Hubs: | 2 |
| Enclosure: | NEMA FB-1 |
- UL 514B File No. E2527|CSA C22.2 No. 18.3/065183
- Exclusive built-in rollers facilitate cable pulling
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Covers have captive stainless steel screws to speed installation, prevent freezing of screws
- Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2)
- Bending space requirement these moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A)
- Rigid Metal and IMC Conduit Applications
