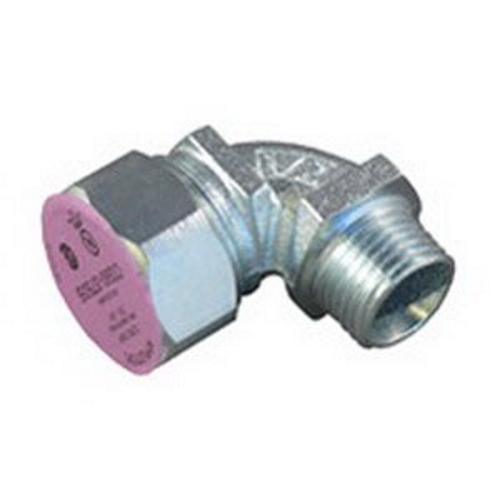

Appleton® CG90-3750S Liquidtight Strain Relief Connector, 1/2 in Trade, 3/8 to 1/2 in Cable Openings, Malleable Iron
Sku #78138144902
MFG #CG90-3750S
Attributes
| Trade Size: | 1/2 in |
| Connection Type: | Thread |
| Material: | Malleable Iron |
| Cable Openings: | 3/8 to 1/2 in |
| Angle: | 90 deg |
| Color: | Purple |
- Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed
- Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
- Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
- Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
- For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
- Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
- ARRA Compliant|Class I, Div 2|Class II, Div 1, 2|Class III|UL 514B|UL File No. E14817|CSA C22.2 No. 18.3|CSA 065178
- Used to provide a liquidtight and strain relief termination for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable and for use in wet or dry locations
