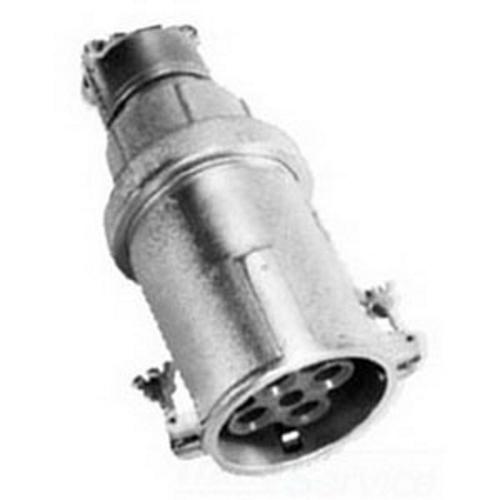

Appleton® Powertite® ARC20034E ARC 3-Phase Grounding Style 2 Weatherproof Pin and Sleeve Connector Body, 200 A, 4 Poles, 3 Wires
Sku #78138144769
MFG #ARC20034E
Attributes
| Type: | 3-Phase Grounding Style 2 Weatherproof |
| Amperage Rating: | 200 A |
| Number of Poles: | 4 |
| Series: | ARC |
| Frequency Rating: | 50/400 Hz |
| Number of Wires: | 3 |
- Shell and extra pole grounding style 2
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 0.687 in dia wire recess
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Water resistant
- AP20034E Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction Applications
- UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
