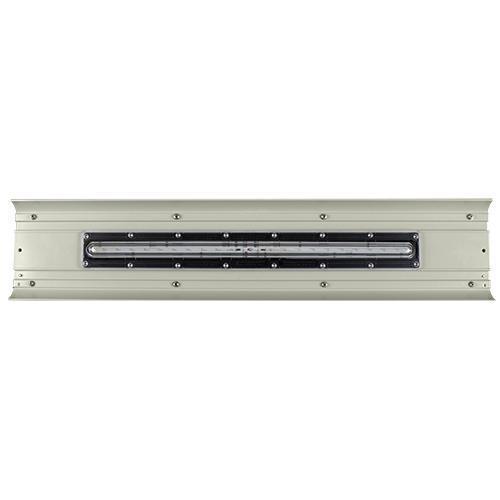

Appleton® Viamaster™ LLEDA15LU2CH Emergency Battery Backup LED Luminaire With Safety Cables, LED Lamp, 120 to 277 V AC, Copper Free Aluminum
Sku #78138144689
MFG #LLEDA15LU2CH
Attributes
| Type: | Emergency Battery Backup |
| Voltage Rating: | 120 to 277 V AC |
| Amperage Rating: | 0.37/0.17 A |
| Series: | LLED |
| Fixture Wattage: | 15 W |
| Frequency Rating: | 50/60 Hz |
- They are ideal for use in locations where flammable gases, vapors and dusts are present, a high degree of corrosion resistance is required and protection against dirt, water and moisture is necessary
- Lightweight design, hinged cover with captive screws and terminal block wiring for easy installation and maintece
- Standard screw type terminal block can accept UL/CSA 26 to 10 AWG wire
- Contemporary, low profile design suitable for tight spaces
- Field replaceable LED driver and lens
- Industry leading thermal management for safe, reliable operation over wide temperature range
- Full range of lumen outputs, with light distribution equivalent to Appleton® FV series fluorescent fixtures
- Easy to retrofit in same mounting footprint as Appleton® FV series fluorescent fixtures
- Two opposing 3/4 in NPT hubs with adjacent terminal blocks for thru wiring, (1) 3/4 in NPT close-up plug provided
- Oil Refineries, Petrochemical Facilities, Pulp and Paper Mills, Food Processing Plants, Waste and Sewer Treatment, Underground Tunnels, General Manufacturing Facilities, NEC and CEC Governed Hazardous Locations and Wet Locations
- UL 1598|UL 8750|UL 844|UL 1598A|UL 50E, cCSAus File No. 065182|cULus File No. E10444, DLC Qualified|NEC/CEC Class I, Div 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Div 2, Groups F, G, Zone 22, Group IIIB, Class III
