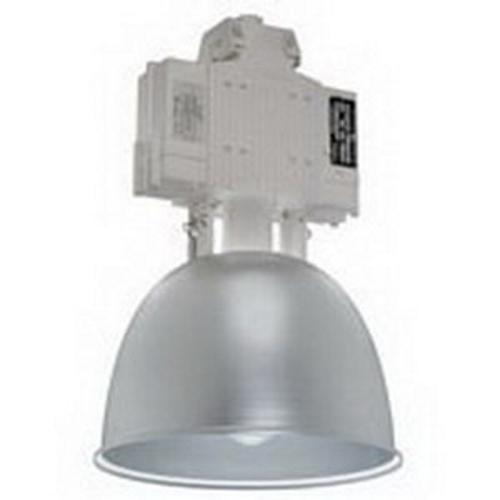

Appleton® G-HB71AL-MT FBX Dimmable High Bay Fixture, 465 W Fixture, 120/208/240/277 VAC
Sku #78138144253
MFG #G-HB71AL-MT
Attributes
| Type: | Dimmable |
| Voltage Rating: | 120/208/240/277 V AC |
| Average Life: | 100000 hr |
| Series: | FBX |
| Fixture Wattage: | 465 W |
| Color Temperature: | 4000 K |
- Finned, copper free (4/10 of 1% maximum) aluminum ballast, aluminum reflector, porcelain sockets, stainless steel locks
- White powder coat polyester ballast
- Natural finished reflector
- 7/8 in KO's at each end of luminaire for wiring or motion detector
- Polyester powder finish for excellent impact and corrosion resistance
- LED light engines and drivers are field replaceable
- Listed by ETL to meet UL 1598 standards for damp location and -35 to 40 deg C ambient
- Dimming drivers are standard, control is 0 to 10 VDC
- 4 kV surge protection standard
- Efficacies up to 120 lm/w
- The FBX LED high bay is a compact and economical luminaire utilizing the latest in LED technology
- Several lumen packages and optical distribution patterns available
- The FBX offers exceptional lighting in mid to high ceiling applications
- Save energy without straining your project budget or sacrificing your light output
- For illumination of manufacturing, storage and other indoor areas
- UL 1598 File No. E109438 Listed|CSA LR9349
