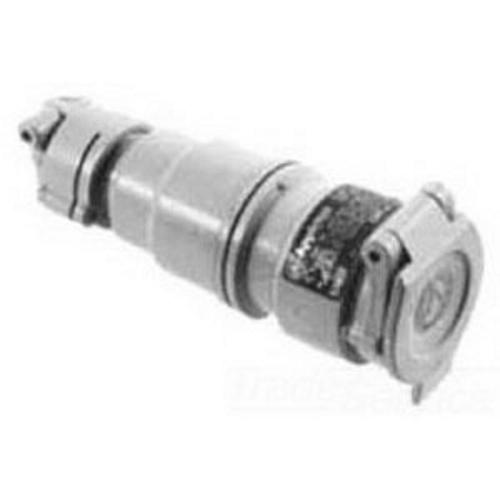

Appleton® U-Line™ ECCL2023 Cable Connector With Spring Cover and Flip Cover, 125 V AC, 20 A, 3 Poles, 2 Wires
Sku #78138144076
MFG #ECCL2023
Attributes
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 2 |
| Amperage Rating: | 20 A |
| Number of Poles: | 3 |
| NEMA Rating: | NEMA 3/3R/7BCD/9FG |
- Completed adapter set consists of ECCL (ECC), short flexible cord and plug to fit existing receptacle
- Gasketed spring cover snaps shut to protect against moisture and combustible dust
- Gasket in receptacle throat seals around plug for protection against environment
- Interior switch cylinder
- O-ring at each end to seals combustible dust and moisture
- Two bushings to accommodate various cable sizes
- Neoprene O-ring
- Dead front safety construction
- For connecting portable devices having ecp u-line plugs to existing receptacles in non-hazardous areas
- Spring Cover and Flip Cover
- Limited
- Class I, Division 1 And 2, Groups B, C, D; Class II, Division, 1 and 2 Groups F, G; Class III; CSA Standard: C22.2 No.25, C22.2 No. 30, C22.2 No. 159; CSA Certified: 038644
