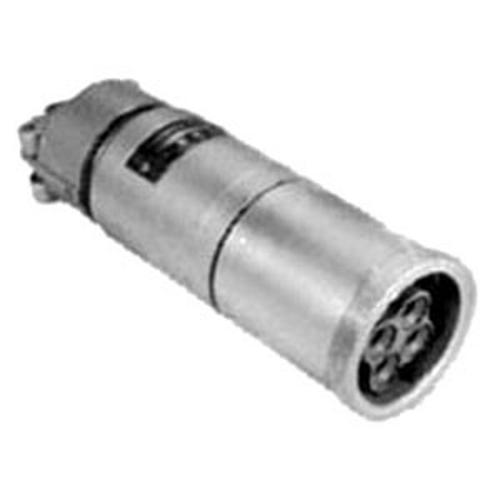

Appleton® Powertite® ARC1044CD ARC 3-Phase Grounding Style 1 Weatherproof Pin and Sleeve Connector Body, 600 V AC/250 V DC, 100 A, 4 Poles, 4 Wires
Sku #78138144052
MFG #ARC1044CD
Attributes
| Type: | 3-Phase Grounding Style 1 Weatherproof |
| Voltage Rating: | 600 V AC/250 V DC |
| Frequency Rating: | 50/400 Hz |
| Series: | ARC |
| Amperage Rating: | 100 A |
| Number of Poles: | 4 |
- Shell grounding style 1
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 0.391 in dia wire recess
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Water resistant
- UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
- ACP1044CD Clamping Ring Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction Applications
