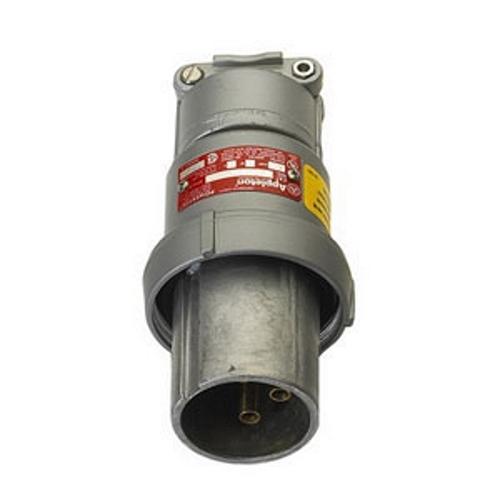

Appleton® Powertite® ACP3033BC ACP 3-Phase Grounding Style 1 Clamping Ring Plug, 250 V AC/600 V DC, 30 A, 3 Poles, 3 Wires, Metallic
Sku #78138144041
MFG #ACP3033BC
Attributes
| Type: | 3-Phase Grounding Style 1 |
| Voltage Rating: | 250 V AC/600 V DC |
| Frequency Rating: | 50/400 Hz |
| Series: | ACP |
| Amperage Rating: | 30 A |
| Number of Poles: | 3 |
- UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
- Shell grounding style 1
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 9/32 in dia wire recess
- Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- ADR3033 Receptacle and ARC3033BC Connector Body, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Other Ship to Shore and Rough Usage Construction Applications
