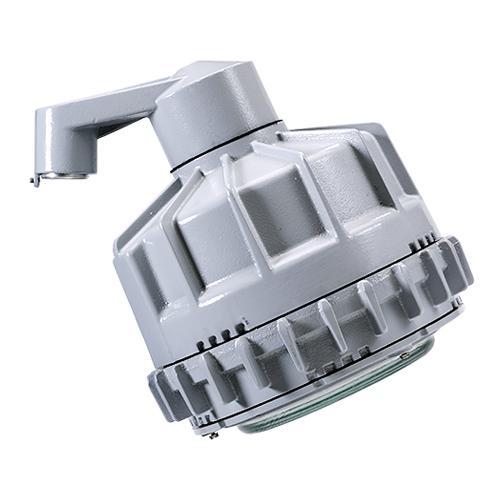

Appleton® Code Master™ CMLEDS404D5BUF Cylindrical Dust-Ignitionproof Factory Sealed Explosionproof Luminaire With Fusing, LED Lamp, 127/128 W Fixture, 120 to 277 V AC, Painted Gray Baked Epoxy Clad Housing
Sku #78138141482
MFG #CMLEDS404D5BUF
Attributes
| Type: | Cylindrical Dust-Ignitionproof Factory Sealed |
| Voltage Rating: | 120 to 277 V AC |
| Amperage Rating: | 1.05/0.47 A |
| Series: | CMLED |
| Fixture Wattage: | 127/128 W |
| Lamp Type: | LED |
- 60000 hr rated life eliminates the need for frequent relamping
- Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
- All threaded joints are flame-tight
- Fixture housing and mounting hoods are copper free cast aluminum with baked epoxy finish, all exposed hardware is stainless steel
- Aluminum body utilizes the same Code Master™ HID mounting hoods and is an easy retrofit for existing Code Master™ HID installations, can be pendant, ceiling, wall or stanchion mounted
- ACME double-lead threads speed installation and fixture removal from mounting hood only half as many turns are required as for single lead threads
- The threads do not stick or gall, eliminating the troublesome problems often encountered with single lead threads during fixture unit removal
- Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
- External seals are not required
- Lens, driver and LED array are all field replaceable
- Fuse Kit Includes Fuse, Fuse Holder and Necessary Hardware For Field Installation
- Limited
- Chemical, Oil, Gas, Petrochemical, Pulp and Paper, Foundries, Manufacturing, Waste and Sewage Treatment, Pharmaceutical, Mining, Power Generation and General Purpose Lighting
- UL 50/50E/844/1598/1598A/8750|CAN/CSA-C22.2 No. 94.1-07 (R2012)|CAN/CSA-C22.2 No. 94.2-07 (R2012)|CAN/CSA-C22.2 No. 137- M1981 (R2009)|CAN/CSA-C22.2 No. 250.0-08 (R2013)|CAN/CSA-C22.2 No. 250.13|CAN/CSA-C22.2 No. 60529-05 (R2010) Certified|ANSI/IEC 60529|cCSAus 70030675|NEC/CEC Class I, Division 1 and 2, Groups B, C, D Class I, Zone 1 Group IIB + H2 Class II, Division 1, Group E, F, G Class II, Division 2, Group F, G Class III
