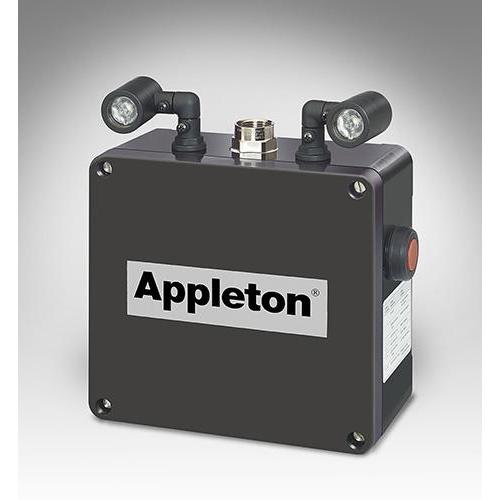

Appleton® Viamaster™ N2LED2T1 Emergency Lighting System, LED Lamp, 120 to 277 V AC, Polyester
Sku #78138137779
MFG #N2LED2T1
Attributes
| Voltage Rating: | 120 to 277 V AC |
| Amperage Rating: | 2.3 A |
| Lamp Type: | LED |
| Fixture Wattage: | 2.513 W |
| Frequency Rating: | 50/60 Hz |
| Lumens: | 257.8 Lumens |
- 3/4 in hub
- Constructional feature dust/corrosion-resistant
- Fiberglass reinforced polyester body and push to test switch, continuous silicone cover gasket, nickel plated brass hub, stainless steel cover screws, aluminum lampheads
- The electronics consist of a solid state charger, transfer circuit and low voltage battery disconnect circuit
- Capacity is sufficient for the connection of 6 output watts
- System supports 4 light heads in any main/remote combination utilizing up to 6 Watts of output power
- This allows for a main unit without any light heads to drive up to 4 remote units or any other combination of 4 lights
- Remote lamp head assemblies (one or two) are available for mounting of lampheads away from main power supply system
- Provides 100% lumen output for 90 minutes of operation with four light heads or 180 minutes of operation with two light heads
- The solid state charger maintains maintece-free NiCd battery at full charge, upon power failure or utility voltage (AC) below 50 V, the DC emergency lighting load is connected to the battery
- During emergency operation, the battery is automatically protected from deep discharge damage by a low voltage battery disconnect (LVD) circuit, upon restoration of normal power, the charger brings the battery to full capacity within acceptable UL time standards
- For manufacturing plants, refineries, petrochemical and chemical plants, waste and sewerage treatment facilities, food processing facilities, and other industrial manufacturing or process facilities subject to wet or corrosive conditions
- UL 1598A/924, CSA C22.2 No. 141-M1985|cCSAus 2715744|Class I, Division 2, Groups A, B, C, D Class I, Zone 2, Group IIC NEMA Type 4X IP66|NEC/CEC
