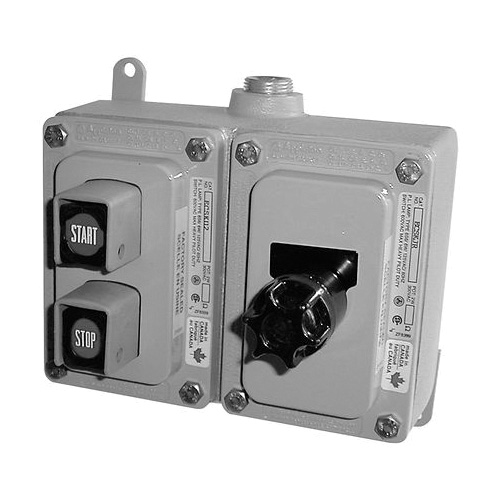

Appleton® ECS3102 Explosionproof Dust-Ignition Proof Factory Sealed Dead End Selector Switch Control Station, 600 V AC, 10 A, 2NO-2NC Contact, 3R/7BCD/9EFG NEMA Rating
Sku #78138137171
MFG #ECS3102
Attributes
| Type: | Explosionproof Dust-Ignition Proof Factory Sealed Dead End |
| Voltage Rating: | 600 V AC |
| Contact Configuration: | 2NO-2NC |
| Series: | ECS |
| Amperage Rating: | 10 A |
| Legend: | HAND-OFF-AUTO |
- For installation in chemical and petrochemical plants, refineries and other process industries
- Corrosion resistant captive stainless steel hex head bolts hold cover to body
- Dozens of possible combinations of pushbuttons, selector switches and pilot lights
- Contact your local sales representative for combinations not found in the catalog pages
- Pushbuttons supplied standard with neoprene weather boot
- Clearly marked terminals with brass screws assure quick, easy wiring
- Pushbutton and selector switches employ heavy duty, 10 A 600 VAC rated contact blocks that are silver cadmium oxide assuring long trouble free operation
- Pilot lights are supplied with jewel guard and 120 VAC lamp
- Factory sealed pushbuttons are supplied with lockout type guards
- Hole in guard locks with up to 1/4 in hasp
- Permits locking of pushbutton to prevent unauthorized operation
- Smooth, rounded integral bushing in hub protects conductor insulation
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- T6 temperature rating
- Two-circuit, 3-position
- One-gang box
- CSA Certified|CEC Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, Class III|CSA Type 3R, 7BCD, 9EFG
