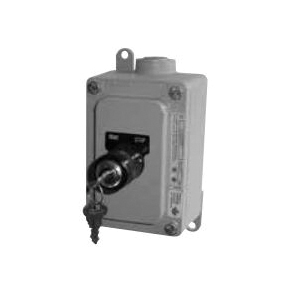

Appleton® ECS2SA82U4X 2-Circuit 2-Position 1-Gang Dead End Dust-Ignitionproof Explosionproof Heavy Duty Non-Factory Sealed Selector Switch Control Station, 600 V AC, 10 A, 2NO-2NC Contact, NEMA 3R/4/4X/7B/7C/7D/9E/9F/9G NEMA Rating
Sku #78138136965
MFG #ECS2SA82U4X
Attributes
| Type: | 2-Circuit 2-Position 1-Gang Dead End Dust-Ignitionproof Explosionproof Heavy Duty Non-Factory Sealed |
| Voltage Rating: | 600 V AC |
| Contact Configuration: | 2NO-2NC |
| Series: | ECS |
| Amperage Rating: | 10 A |
| Operator Type: | Keyed |
- NEC/CEC Class I, Division 1, 2, Group B, C, D|Class II, Division 1, 2, Group E, F, G|Class III|CSA C22.2 No. 25|CSA C22.2 No. 30|CSA C22.2 No. 14-M|CSA 038339
- Corrosion-resistant captive stainless steel hex head bolts hold cover to body
- Dozens of possible combinations of pushbuttons, selector switches and pilot lights
- Pushbuttons supplied standard with neoprene weather boot
- Clearly marked terminals with brass screws assure quick, easy wiring
- Pushbutton and selector switch contacts are silver cadmium oxide assuring long trouble-free operation
- Factory sealed pushbuttons are supplied with lockout type guards, hole in guard locks with up to 1/4 in hasp, permits locking of pushbutton to prevent unauthorized operation
- Factory sealed control stations confine the arcing to the devices within the enclosure
- Eliminates the need for adding external sealing fittings at each conduit entry
- Smooth, rounded integral bushings in hubs protect conductor insulation
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
