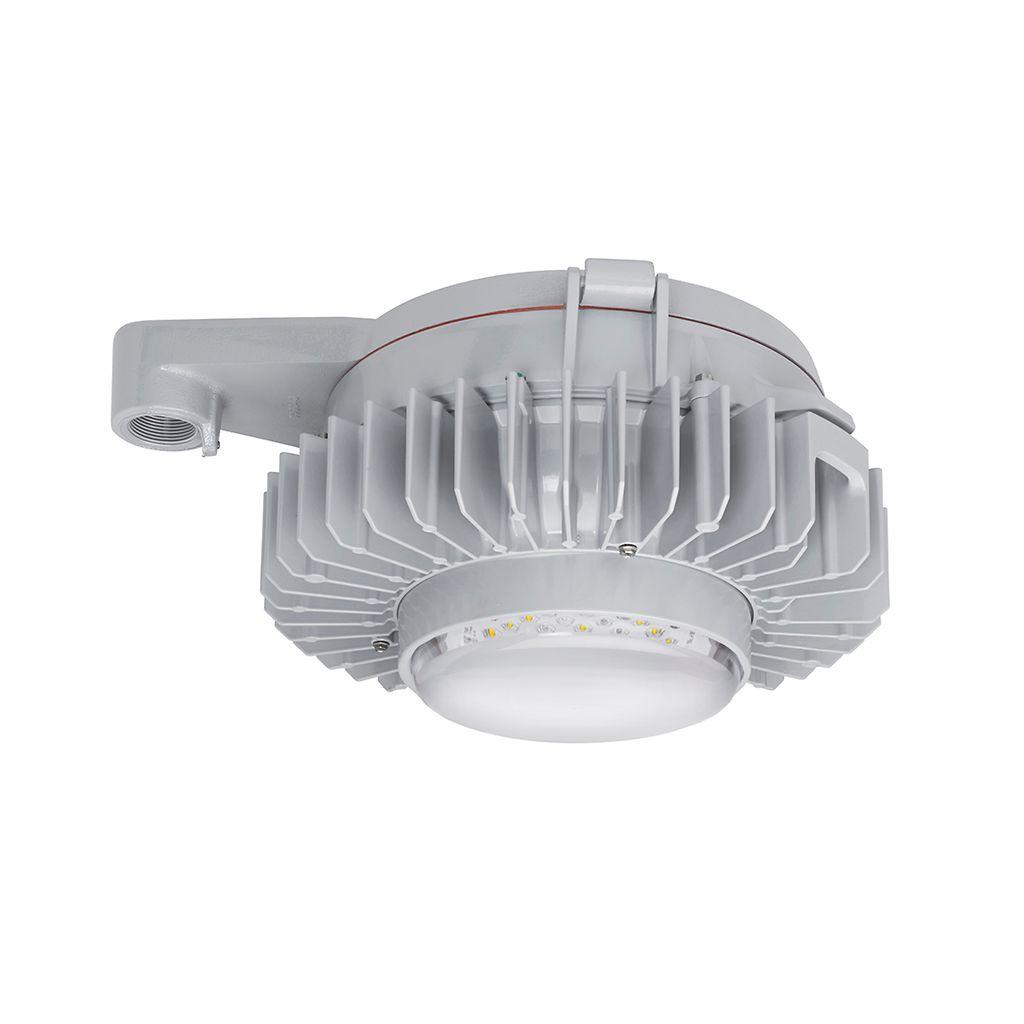

Appleton® MLGL9CP5BU ML Enclosed Gasketed Explosion-Proof Outdoor Lighting, LED Lamp, 75 W Fixture, 120 to 277 VAC, 125 to 300 VDC
Sku #78138134931
MFG #MLGL9CP5BU
Attributes
| Type: | Enclosed Gasketed |
| Voltage Rating: | 120 to 277 V AC/125 to 300 V DC |
| Lamp Type: | LED |
| Series: | ML |
| Fixture Wattage: | 75 W |
| Light Color: | Cool |
- Suitable for Wet Locations
- Design is suited for low mounting heights, from 7 ft., up to 30 ft
- Standard version, Seven light outputs provide up to 24,000 lumens
- LED L70 reported at 60,000 hr
- Emergency version, Two light outputs provide up to 5500 lumens in standard mode and 1400 lumens in 90 min emergency battery backup mode and up to 900 lumens in 180 min emergency backup mode
- Choice of optics for optimal light distribution in a variety of applications, Type I, Type III, Type V or Type V Wide
- Choice of color temperature (CCT), 5000K cool white, 4000K neutral white or 3000K warm white
- Modular design provides thousands of combinations for maximum versatility, four different globe options for the Standard version (three different globe options for the Emergency version) and seven standard mounting hoods
- Retrofit adapters for Crouse-Hinds Killark, and Mercmaster II hoods available
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction assures 360 deg compression at all points on fixture housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies installation
- Standard 6 kV surge protection with an option to upgrade to 10kV, heavy duty, high temperature silicone gaskets and a rugged housing with superior thermal design translates to long luminaire life
- Luminaire housing has wiring compartment with terminal block separate for easy wiring access
- Standard NPT threads with M20 option on Standard version
- Field replaceable globes and LED driver
- NEC/CEC Certified Class I, Division 2, Groups A, B, C, D/Class II, Division 1 and 2, Group E, F, G/Class III/Class I Zone 2 AEx ec IIC/Zone 21 AEx tb IIIC/Class I Zone 2 Ex ec IIC/Zone 21 Ex tb IIIC/Type 3R, 4$ 4X/IP66/IP67/IDA Approved with Visor /American Bureau of Shipping (ABS) Certified/Marine Outside Type (Salt Water)
