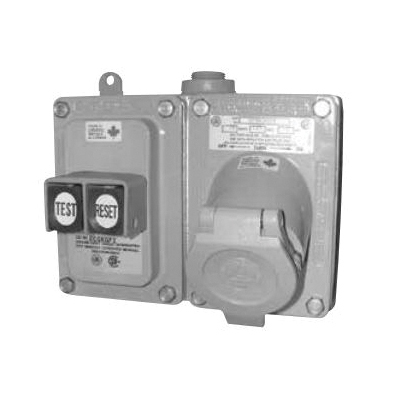

Appleton® U-Line™ ECS6GFI2023 Dust-Ignitionproof Explosionproof Pin and Sleeve Receptacle With Ground Fault Protection, 125 V AC, 20 A, Gray
Sku #78138130621
MFG #ECS6GFI2023
Attributes
| Type: | Dust-Ignitionproof Explosionproof |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Series: | ECS |
| Amperage Rating: | 20 A |
| NEMA Rating: | NEMA 3R/7/B/C/D/9/E/F/G |
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non-explosionproof receptacle (NEMA 5-20R or 6-20R) as well as U-Line® explosionproof receptacles
- Intermateable with competitor's plugs of like configurations
- CSA C22.2 No. 25|C22.2 No. 30|C22.2 No.42|C22.2 No. 159|CSA File No. 038644
