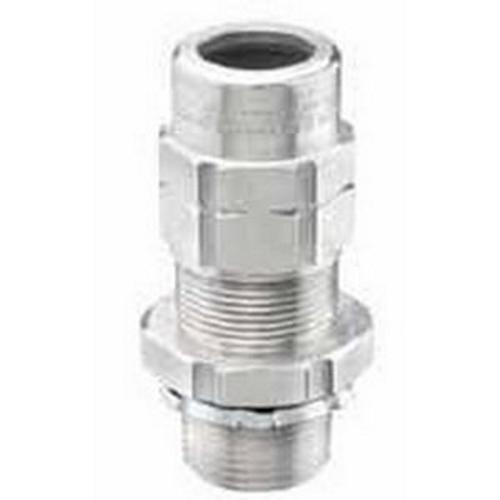

Appleton® TMC2-200200A TMC2 Cable Gland Connector, 2 in Trade, 1.65 to 2 in Cable Openings, Copper Free Aluminum
Sku #78138130083
MFG #TMC2-200200A
Attributes
| Series: | TMC2 |
| Cable Openings: | 1.65 to 2 in |
| Connection Type: | NPT |
| Trade Size: | 2 in |
| Cable Type: | JMC/MC/Teck |
| Angle: | 360 deg |
- Simplified two piece design
- Integral 'O' ring face seal providing - 4X and IP66
- Independent sealing and armor clamping
- Removable cable armor end stop accommodates larger insulated conductors
- Superior pull-out prevention
- Compact slim profile
- Reduced installation time
- Widest cable acceptance range
- Re-usable design
- Additional integral deluge proof seal for protection in extreme offshore and onshore environments
- Aluminum connectors 1/2 in, 3/4 in and 1 in supplied with zinc plated steel locknut
- For jacketed metal clad, MC/MC-HL, corrugated interlocked aluminum/steel armor and continuously welded armor cable
- CSA 249506, C22.2 File No. 174 Certified|NEC/CEC Class I, Div 2, Groups A, B, C, D, Class I, Zones 1 and 2, AExe II AEx tA IIC, Class I, Zones 1 and 2, Exe II Ex tA IIC, Class II, Div 1 and 2, Groups E, F, G, Class III, Div 1 and 2|UL 514B/2225
