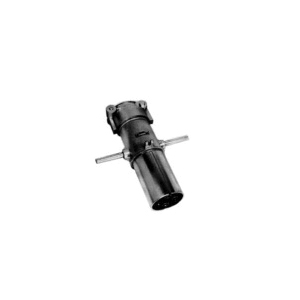

Appleton® Powertite® AP40133F AP Grounding Style 1 Weatherproof Pin and Sleeve Plug, 250 V AC/600 V DC, 400 A, 3 Poles, 3 Wires
Sku #78138129559
MFG #AP40133F
Attributes
| Type: | Grounding Style 1 Weatherproof |
| Voltage Rating: | 250 V AC/600 V DC |
| Frequency Rating: | 50/400 Hz |
| Series: | AP |
| Amperage Rating: | 400 A |
| Number of Poles: | 3 |
- UL 1682|UL 1686|UL 50E File No. E145916/E145917|CSA C22.2
- Shell grounding style 1
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 1-1/4 in dia wire recess
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore Applications and Rough Usage Construction Applications
