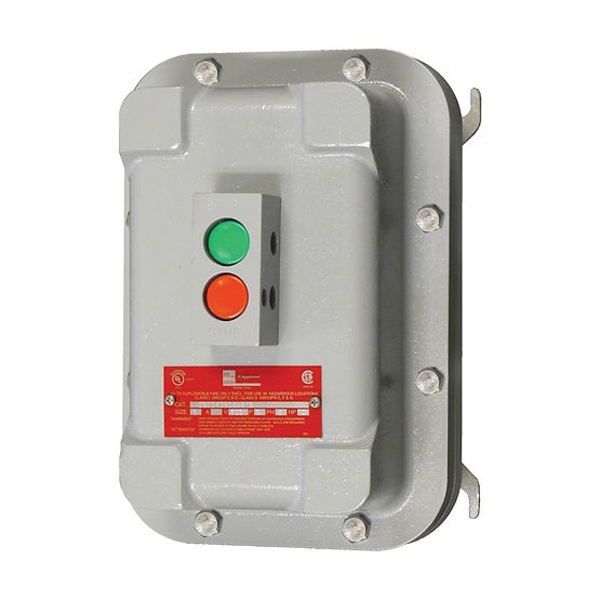

Appleton® ACSE040805SQD03 Manual Motor Starter, 3 Poles, NEMA 3/3R/4/4X/7C/7D/9E/9F/9G
Sku #78138128954
MFG #ACSE040805SQD03
Attributes
| Series: | ACSE |
| Motor Power: | 3 hp |
| Phase: | 3 |
| Voltage Rating: | 200 V AC |
| Number of Poles: | 3 |
| Enclosure Type: | NEMA 3/3R/4/4X/7C/7D/9E/9F/9G |
- Rugged, compact enclosures supplied with Square D™, Allen Bradley or GE manual motor starters using three overloads
- Mating surfaces are precision milled to exceed explosionproof specifications
- Covers secure with 300 series stainless steel hex head bolts
- Bolt on mounting feet
- Push buttons are positive operating and can be locked in the stop position
- Constructional feature explosionproof, dust-ignitionproof and waterproof
- NEMA Size 0
- NEC/CEC Class I Division 1 and 2 Group C and D/Class II Division 1 and 2 Group E F G/Class III|CSA C22.2 #14/C22.2 #25/C22.2 #30/042130|UL E84577/1203
- Explosionproof across the line manual motor starters for starting single and polyphase VAC or VDC motors
