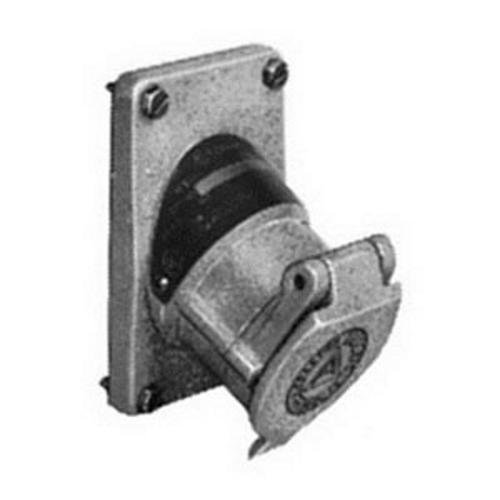

Appleton® U-Line™ EFSR-2023 Dust-Ignitionproof Explosionproof Receptacle Cover Assembly, 125 V AC, 20 A, 3 Poles, 2 Wires
Sku #78138128805
MFG #EFSR-2023
Attributes
| Type: | Dust-Ignitionproof |
| Amperage Rating: | 20 A |
| Number of Poles: | 3 |
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 2 |
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Glass filled reinforced polyester insulating blocks
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line™ explosionproof receptacles
- Intermateable with competitor's plugs of like configurations
- ECP Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps Applications
- Class I, Division 1 And 2 Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 And 2 Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159; CSA Certified: 038644
