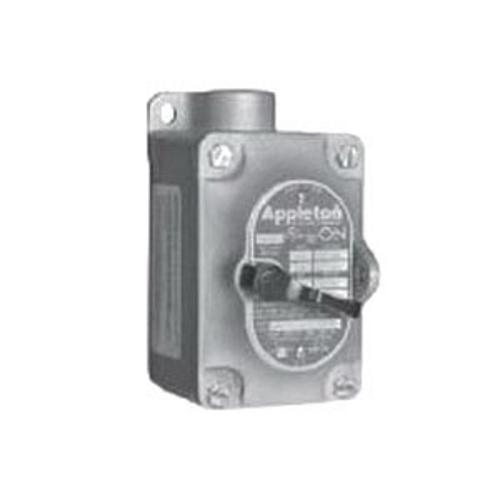

Appleton® EFSC175-F1 1-Gang Feed-Through Non-Sealed Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 7CD/9EFG NEMA Rating
Sku #78138128405
MFG #EFSC175-F1
Attributes
| Type: | 1-Gang Feed-Through Non-Sealed |
| Voltage Rating: | 120/277 V AC |
| Number of Poles: | 1 |
| Series: | EFS |
| Amperage Rating: | 20 A |
| Actuator: | Front Operated Lever |
- Enclosures have external mounting lugs for ease of mounting
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Enclosures furnished with internal ground screw
- Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure
- Stainless steel hex head cap screws for attaching cover to mounting enclosure
- Choice of front operating or side rocker arm handle-each may be locked in ON or OFF position
- Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements
- For use in classified areas where ignitable vapors, gases or highly combustible dusts are present
- Explosion proof dust-ignitionproof
- Used in classified areas where ignitable vapors, gases or highly combustible dusts are present, installation in chemical plants, petrochemical plants, refineries and other process industries
- Internal Ground Screw
- 5 Years
- UL 894|UL 1203 File No. E10523/E81751|NEC class I, Div 1 and 2, Groups C, D class II, Div 1 and 2, Groups E, F, G class III
