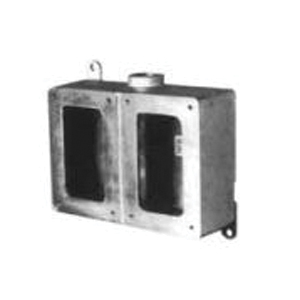

Appleton® ECS-210 Mounting Box With ECSK Cover Assembly, For Use With ECS Series 3-Poles 2-Gangs 2-Wires Factory Sealed and Non-Factory Sealed Control Stations, NEMA 3R/7BCD/9EFG, Cast Copper-Free Aluminum
Sku #78138128146
MFG #ECS-210
Attributes
| Suitable For Use With: | ECS Series 3-Poles 2-Gangs 2-Wires Factory Sealed and Non-Factory Sealed Control Stations |
| Material: | Cast Copper-Free Aluminum |
| Dimensions: | 7.68 in W x 3 in D x 7 in H |
| NEMA Rating: | NEMA 3R/7BCD/9EFG |
| Finish: | Baked Epoxy Painted |
| Country of Origin: | CA |
- Factory sealed external seals not required
- Arcing is safely confined to receptacle interior
- Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non-explosionproof receptacle (NEMA 5-15R, 5-20R or 6-20R) as well as U-Line explosionproof receptacles
- Intermateable with competitor's plugs of like configurations
- Pilot Lights are supplied with jewel guard and 120 VAC lamp
- Factory sealed pushbuttons are supplied with lockout type guards
- Hole in guard locks with up to 1/4 in hasp
- Permits locking of pushbutton to prevent unauthorized operation
- Smooth rounded integral bushing in hub protects conductor insulation
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- T6 temperature rating
- Constructional feature dust-ignitionproof and watertight
- 0.538 to 0.639 Dia plug cable
- (1) 1 in Feed-Through Hubs, Mounting Feet, Ground Screw and Close-Up Plug For Dead-End Use
- 1 Year Limited
- Pushbuttons and Selector Switches
