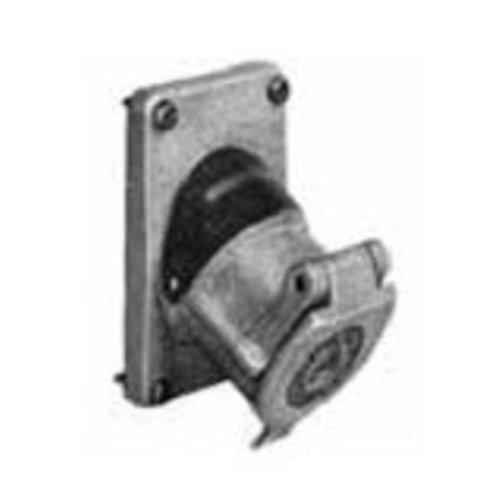

Appleton® U-Line ECSK-2023 Plugs and Receptacle, 125 V AC, 20 A, 3 Poles, 2 Wires
Sku #78138128141
MFG #ECSK-2023
Attributes
| Voltage Rating: | 125 V AC |
| Horsepower: | 1 hp |
| Number of Wires: | 2 |
| Amperage Rating: | 20 A |
| Number of Poles: | 3 |
| NEMA Rating: | NEMA 5-15R/5-20R/6-20R |
- Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps Applications
- Class I, Div 1, 2, Groups B, C, D, Class II, Div 1, 2, Group G, Coal Dust, Class III|CSA Certified
- Factory sealed, external seals not required, arcing is safely confined to receptacle interior
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non-explosionproof receptacle (NEMA 5-15R, 5-20R or 6-20R) as well as U-Line™ explosionproof receptacles
- Intermateable with competitors plugs of like configurations
- 0.538 to 0.639 in Dia plug cable
- Dead end mounting box entries
- ECP plug are copper free (4/10 of 1% maximum) aluminum with epoxy powder coat
- Fiberglass reinforced polyester insulating blocks
