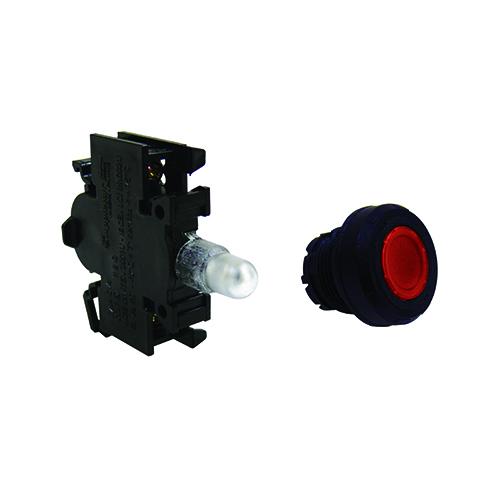

Appleton® UniCode™ 2 ULR0R Illuminated Spring Return Pushbutton Actuator, 39 mm Dia, Red
Sku #78138126433
MFG #ULR0R
Attributes
| Type: | Illuminated Spring Return |
| Voltage Rating: | 12 to 254 V AC/12 to 60 V DC |
| Enclosure Type: | NEMA 4X/IP66/IK10 |
| Size: | 39 mm Dia |
| Lamp Type: | LED |
| Mounting Type: | Rail |
- For Unicode™ 2 series enclosures
- Can be equipped with up to two UniCode 2 series contact blocks (UCB) contact blocks
- Globally certified
- Long lifetime, high intensity single LED light
- 2.5 mm.sq (0.004 in2) terminal connection
- Ethylene propylene diene Monomer (M-class) rubber (EPDM) seal
- UL 508/50E/60079-0/60079-1/60079-7/508/50E/60079-0/60079-1/60079-7|CAN/CSA C22.2 No. 0-M91/No. 14-05/No. 94-M91/No. 213-M1987/No. 60079-0:07/No. 60079-1:07/No. 60529:05, E60079-7-03, E61241-1-1:02 Certified|ANSI/ISA 12.12.01-2011|ANSI/ISA 61241-0 (12.10.02)-2006|ANSI/ISA 61241-1(12.10.03)-2006|CSA Certificate 2358701
