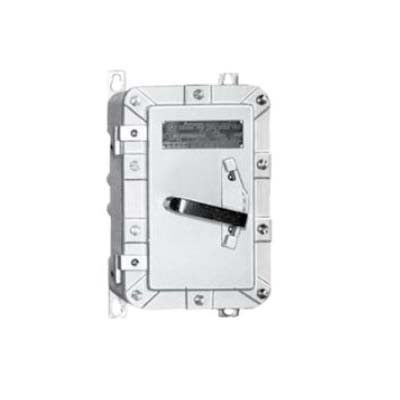

Appleton® EDS30362AUX Heavy Duty Disconnect Switch, 600 V AC, 30 A, 2NO-2NC 2 Form C Contact, 3 Poles
Sku #78138125426
MFG #EDS30362AUX
Attributes
| Type: | Heavy Duty |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 3 |
| Series: | EDS |
| Amperage Rating: | 30 A |
| Contact Form: | 2NO-2NC 2 Form C |
- Hinged, removable cover provides instant access for installation and servicing
- Self-locating, spring mounted internal handle actuator
- Rugged handle has stainless steel shaft within a stainless steel bushing, may be locked in On or Off position
- Removable mounting plate simplifies installation
- Top and bottom standard feed through conduit openings
- Removable reducer bushing furnished with each opening
- Additional top and bottom openings for drain and breather, supplied with close-up plugs
- Covers have captive, slotted, stainless steel screws to prevent freezing
- Stainless steel handle shaft, bushing, exposed hardware
- Buy American Act Compliant|UL 894, 1203|UL File No. E10523|CSA C22.2 No. 4, C22.2 No. 25, C22.2 No. 30|CSA 039569
- For used to functions as load disconnect switch or as individual motor control switch
