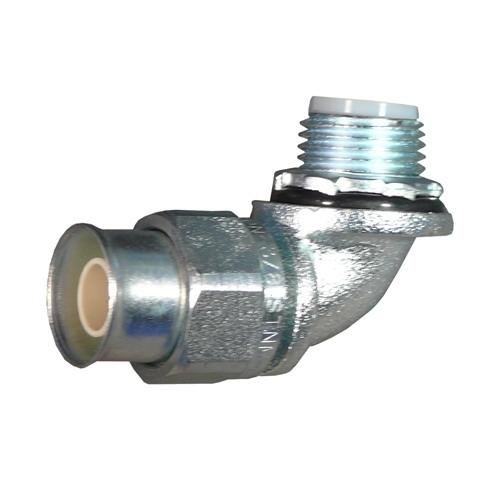

Appleton® STNM-90200 Conduit Connector With Insulated Throat, 2 in Trade, 90 deg, Steel
Sku #78138123893
MFG #STNM-90200
Attributes
| Series: | STNM |
| Angle: | 90 deg |
| Material: | Steel |
| Trade Size: | 2 in |
| Suitable For Use With: | Type A Flexible Non-Metallic Conduit |
| Dimensions: | 4-13/32 in L x 3-3/8 in H |
- Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment Installation
- Limited
- Locknut and Neoprene O-Ring
- Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals
- The positive, pull out proof seal formed by a STNM connector begins with its deep threaded ferrule that bites into the inner wall of the conduit
- The sleeve separates the STNM series apart from ordinary connectors
- The sleeve is held captive within a compression nut that allows it to move freely and self align with the conduit having a slightly irregular surface or varying wall thickness
- The nut rides only on the sleeve and not on the conduit
- It cannot bend or twist the conduit and thereby protects wiring
- When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing
- Ease of assembly and disassembly of STNM connectors permits make up of harnesses in advance for fast, simple connections during production line assemblies
- UL 514B|UL File No. E14814|CSA C22.2 No. 18|CSA 065178|Class I, Div 2
