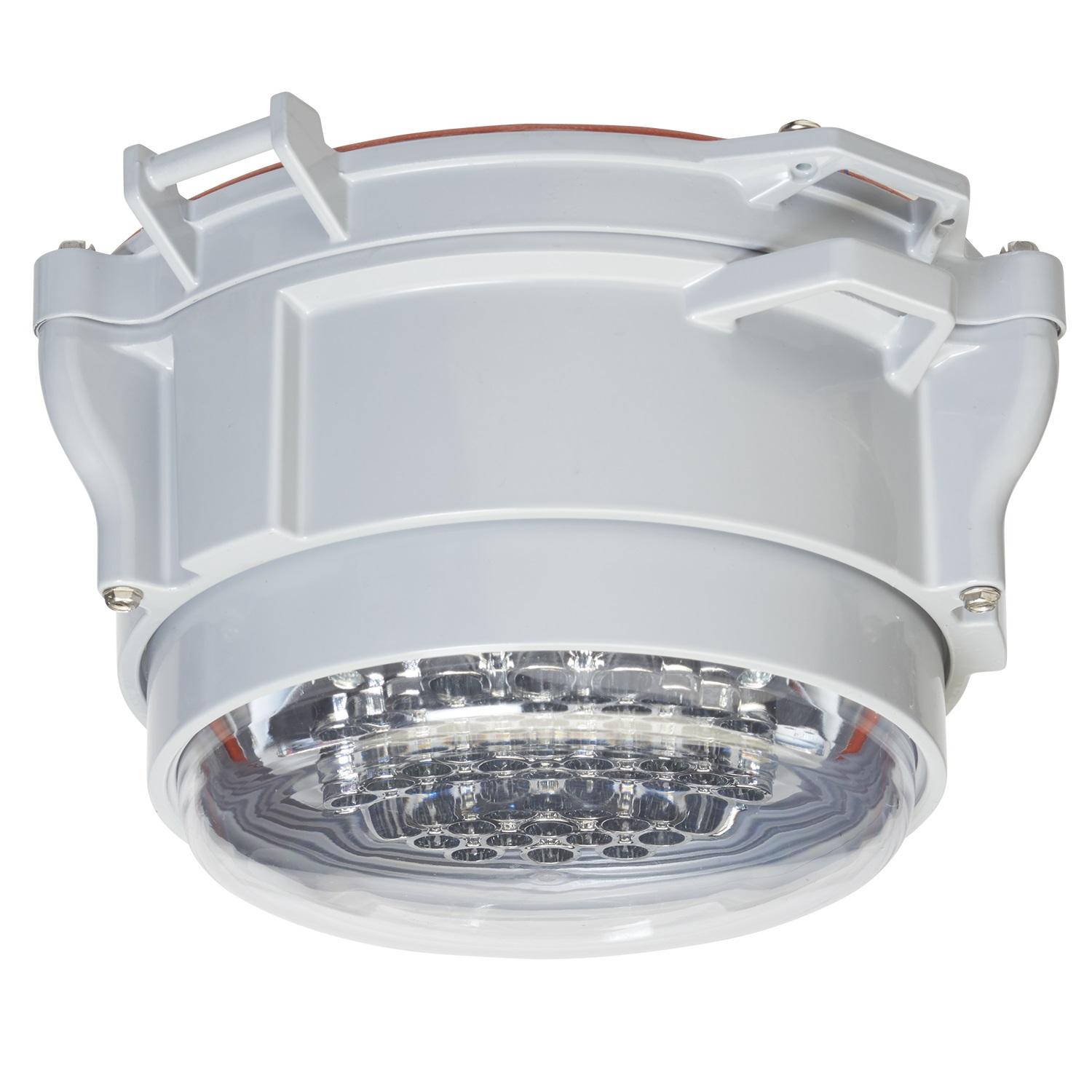

Appleton® VMV5LCG5BH Contender™ Enclosed Gasketed LED Luminaire, LED Lamp, 347 to 480 V AC, Epoxy Powder Coated Housing
Sku #78138122834
MFG #VMV5LCG5BH
Attributes
| Type: | Enclosed Gasketed |
| Voltage Rating: | 347 to 480 V AC |
| Lamp Type: | LED |
| Series: | Contender™ |
| Amperage Rating: | 1300 mA |
| Lamp Wattage: | 48 W |
- For use in marine and hazardous and wet locations, walkways/catwalks, stairwells, grain elevators, tunnels, pipe racks, offshore rigs, vessel lighting, cooling towers and processing areas
- NEC Certified|CEC Compliant|ABS Approved|CSA Certified|UL Listed|Class I Div 2 Groups A/B/C/D/Zone 2/Group IIC/Class II/Div 1 Groups E/F/G/Zone 21/22/Group IIIC/Class II Div 2 Groups F/G/Class III
- Enclosed and gasketed fixtures suitable for use in a wide range of industrial, chemical processing and other areas where flammable gases, vapors and combustible dusts and fibers are present including simultaneous exposure
- Ideal for use in areas of low clearance, low ceiling heights or where fixture weights must be minimized
- Typical industries include pulp and paper mills, processing plants, chemical plants, petrochemical facilities, oil refineries, drilling rigs, foundries, waste treatment, mining and steel mills
- Compact, light weight low profile design is suited for low mounting heights (less than 12 lb)
- Customize to the application requirements with four different field replaceable globe options: clear and diffused polycarbonate, clear glass, or prismatic glass refractor
- Three light output levels for retrofit of HID fixtures up to 175 W
- Standard 6 kV surge protection
- Heavy duty, high temperature silicone rubber gaskets
- Luminaire comes pre-wired with three conductors, approximately 12 in L of 14 AWG TEW wire from the IP68 watertight NPT hub at the top of the luminaire lid
- 150 to 175 W HPS light level equivalent
