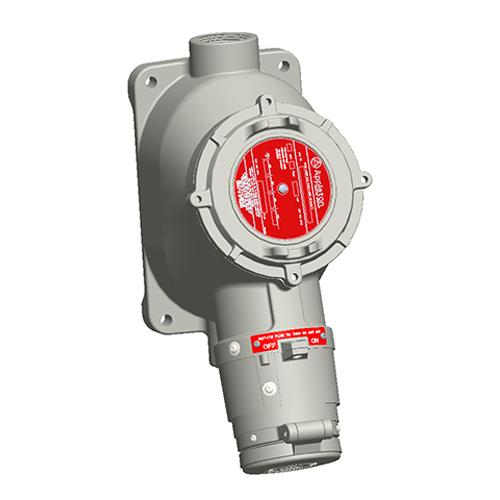

Appleton® FSQC61040 Receptacle, 600 V AC/250 V DC, 100 A, 4 Poles, 3 Wires
Sku #78138120891
MFG #FSQC61040
Attributes
| Series: | FSQC |
| Amperage Rating: | 100 A |
| Number of Wires: | 3 |
| Voltage Rating: | 600 V AC/250 V DC |
| Number of Poles: | 4 |
| NEMA Rating: | NEMA 3/3R/4/4X/7CD/9FG |
- Large housing provides ample wiring room
- Style 2 (shell and extra pole) grounding
- Spring door keeps dust out of receptacle when plug is not in use
- Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Interlocked disconnect switch provides safe connect and disconnect operation at 30, 60 or 100 A, 600 VAC maximum, three pole, non-fused motor circuit switch
- FSQC permits safe operation in class 1, group B as well as class 1, groups C and D, class II, groups F, G and class III
- To operate, insert plug and turn receptacle face to ON position
- To remove plug, turn to OFF position and pull plug out
- ACP Powertite™ series plug fits hazardous location FSQC receptacles
- Both flip and screw covers are provided
- Tapped NPT conduit openings at top and bottom: 100 A 2 in
- Receptacle insulator and contacts are not serviceable
- 2 to 1/0 AWG wire
- CSA C22.2 #25/C22.2 #30/C22.2 #159/025875|NEC/CEC Class I Division 1 and 2 Group B C D/Class II Division 1 and 2 Group F G/Class III|UL 894/1010/1203/1682/1686/E10784
- Lighting Systems, Conveyors, Heaters, Motor-Generator Sets, Air Conditioners, Compressors, Pumps, Constructional Feature Explosionproof and Dust-Ignitionproof
- 2 in Hub
