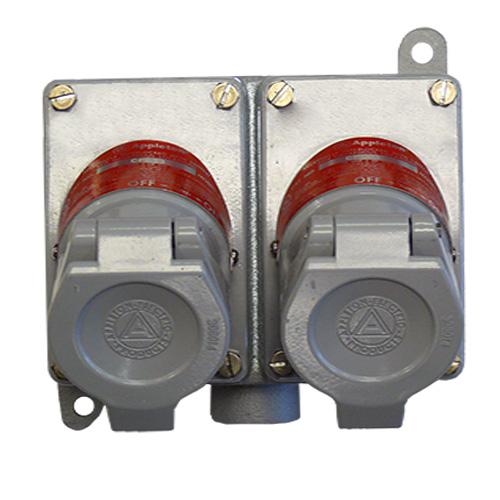

Appleton® CPE22350 Contender™ 2-Gang Dead-End Pin and Sleeve Receptacle With Malleable Iron EFD Mounting Box, 120 to 240 V AC/24 V DC, 20 A, 3 Poles, 2 Wires
Sku #78138119695
MFG #CPE22350
Attributes
| Type: | 2-Gang Dead-End |
| Voltage Rating: | 120 to 240 V AC/24 V DC |
| Number of Poles: | 3 |
| Series: | Contender™ CPS |
| Amperage Rating: | 20 A |
| Number of Wires: | 2 |
- Captive stainless steel hex head slotted screws
- Plug mechanical cable clamps prevent strain on cables, they meet or exceed UL strain relief pull-out requirements
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Delayed action construction: Insert plug partially rotate slide on front of receptacle and insert plug fully
- External seals not required
- CPS series plug and receptacles are supplied with pressure terminal connectors
- Energizes receptacle terminals deeply recessed to prevent accidental touching
- copper-free aluminum cover
- Malleable iron mounting bodies
- Insulating blocks: Fiberglass reinforced thermoset polyester
- Neoprene cover gasket and plug grommet
- Malleable iron mounting bodies: Triple coat (1) zinc electroplate, (2) chromate and (3) epoxy powder coat
- Epoxy powder coated aluminum covers
- Constructional feature explosionproof and dead-front safety
- Factory sealed
- Surface mount
- For CPP-2023 plug, locations where receptacles are used with stationary or portable electrically operated devices such as lighting systems, conveyors, heaters, motor generator sets, air conditioners, compressors, pumps and locations where damp or corrosive conditions exist
- Class 1, Group C, D, Class I Div 2 Group B, C, D, Class II, Groups F, G; UL Standard: UL 1010 (UL 1203) UL Listed: E10784, E81751; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 159; CSA Certified: 038644
- 1/2 in Hub
- 1 Year
