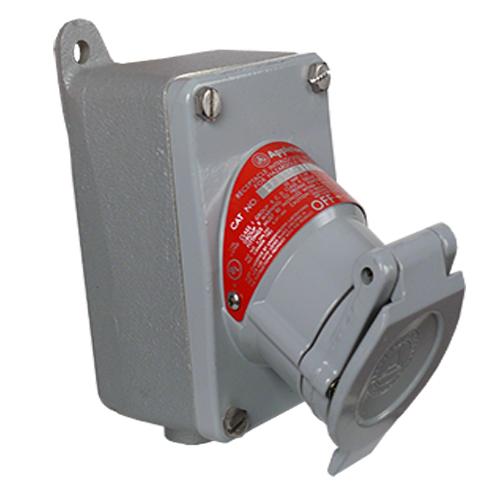

Appleton® CPE12350 CPS 1-Gang Dead End Explosionproof Receptacle Assembly With EFD Mounting Boxes, 120 to 240 V AC/24 V DC, 20 A, 3 Poles, 2 Wires
Sku #78138119680
MFG #CPE12350
Attributes
| Type: | 1-Gang Dead End |
| Voltage Rating: | 120 to 240 V AC/24 V DC |
| Horsepower: | 1 hp |
| Series: | CPS |
| Amperage Rating: | 20 A |
| Number of Poles: | 3 |
- Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; UL Standard: UL 1010 (UL 1203) UL Listed: E10784, E81751; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 159; CSA Certified: 038644
- CPP-2023 Plug, Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps Applications
- Dead front safety construction
- Factory sealed, external seals not required
- CPS series receptacles are supplied with pressure terminal connectors
- Captive hex head slotted, stainless steel screws
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Fiberglass reinforced thermoset polyester insulating blocks
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
