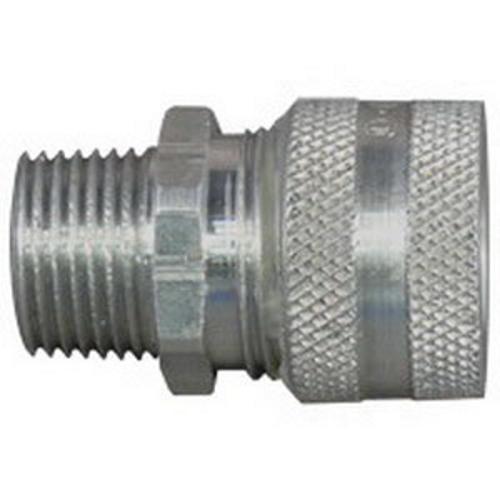

Appleton® CG-75100 CG Series Strain Relief Straight Cord Connector, 1 in Trade, 3/4 to 7/8 in Cable Openings, Aluminum, Natural
Sku #78138119180
MFG #CG-75100
Attributes
| Type: | Strain Relief |
| Trade Size: | 1 in |
| Connection Type: | Threaded Hub |
| Series: | CG Series |
| Cable Openings: | 3/4 to 7/8 in |
| Material: | Aluminum |
- Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed
- Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
- Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
- Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
- For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
- Silicone free
- For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable
- CSA C22.2 File No.18.3|CSA 065178|UL Listed for Class I, Div 2|Class II, Div 1 and 2|Class III|UL 514B File No. E14817 Listed
