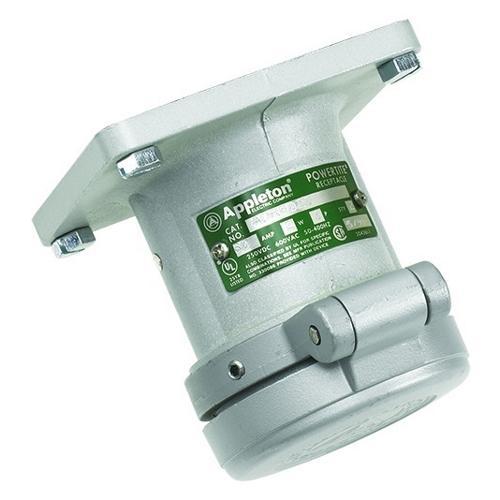

Appleton® Powertite® ADR6034 ADR 3-Phase Grounding Style 2 Pin and Sleeve Receptacle With Spring Door and Screw Cover, 600 V AC/250 V DC, 60 A, 4 Poles, 3 Wires, Natural
Sku #78138118642
MFG #ADR6034
Attributes
| Type: | 3-Phase Grounding Style 2 |
| Voltage Rating: | 600 V AC/250 V DC |
| Horsepower: | 30 hp |
| Series: | ADR |
| Amperage Rating: | 60 A |
| Frequency Rating: | 50/400 Hz |
- UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Locking screw and slot prevents plug cable collar from "backing off"
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- ACP6034BC Metallic and NmACP6034BC Nonmetallic Clamping Ring Plugs, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Weatherproof Enclosure and Rough Usage Construction Applications
